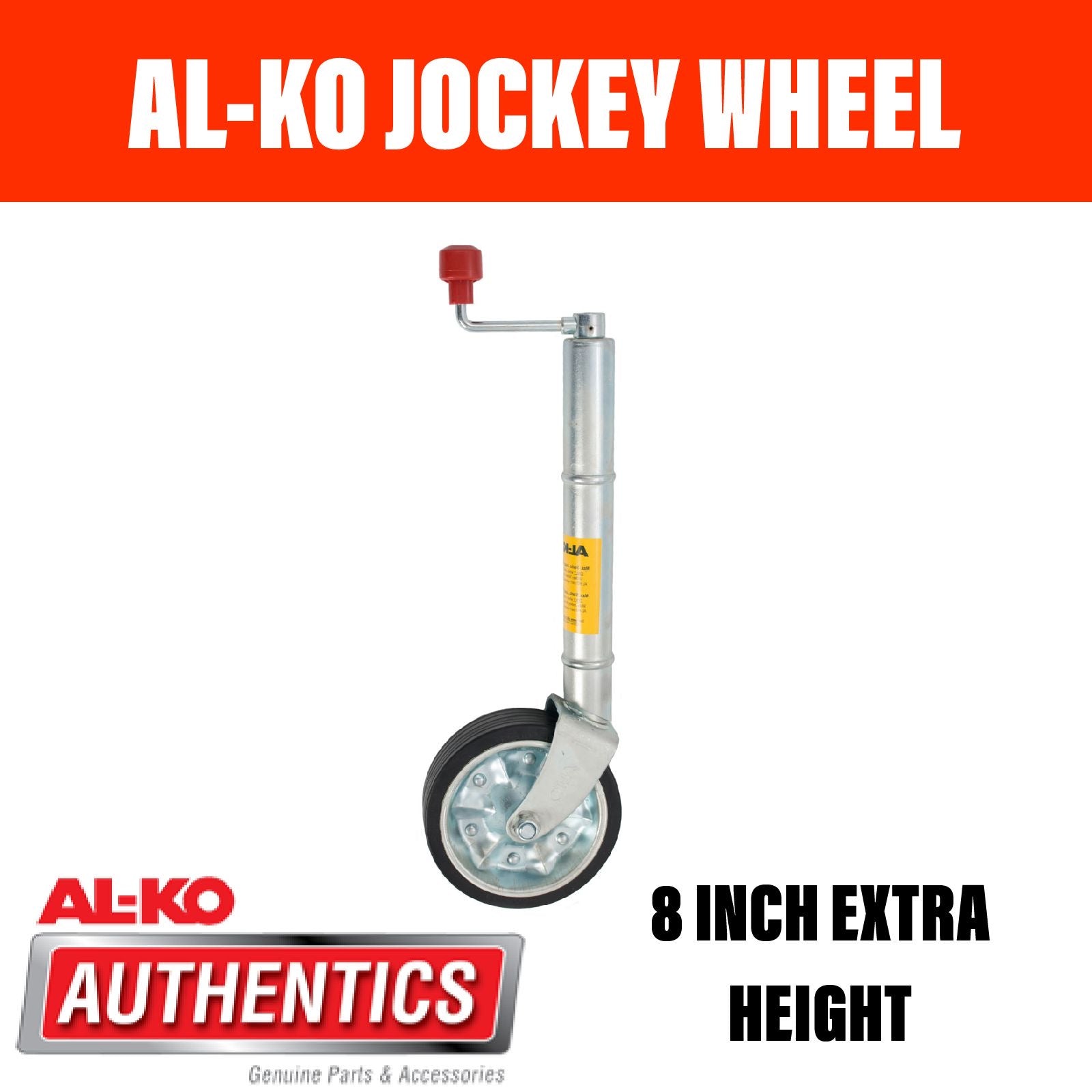

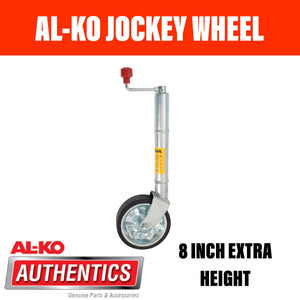

Jockey Wheel - 8" Wheel Extra Long - With Weld On Or Bolt On Clamp
Part Number: 628300
Jockey Wheel - 8" Wheel Extra Long - With Weld On Or Bolt On Clamp
Specifications:
- Surface finish: Zinc Plated
- Static Capacity: 400kg
- Outer Tube Dia.: 48mm
- Weight: 7kg
- Wheel Dia.: 200mm
- Mount holes per side: 1
- Mounting Hole Dia.: 13mm
- Hole spacing: 150mm

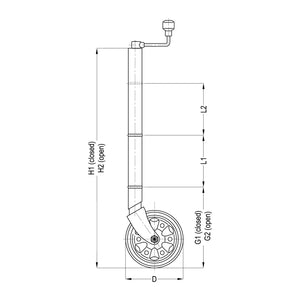

- Height Closed (H1):730mm
- Height Open (H2):995mm
- Bottom of wheel to bottom rib center when closed (G1): 370mm
- Bottom of wheel to bottob rib center when closed (G2): 635mm
