Jockey Wheel - 8" Wheel - With Large Locking Pin Swivel Bracket
Part Number: 628200BX
Ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel. No need to remove it from the trailer - just pull the release handle and the jockey wheel rotates into a suitable traveling position. This unique design is covered by Registered Design in Australia and New Zealand. The swivel bracket can be either welded or bolted to the drawbar. A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar. Ideal for marine use.
Jockey Wheel - 8" Wheel - With Large Locking Pin Swivel Bracket
Specifications:
- Surface finish: Zinc Plated
- Static Capacity: 400kg
- Outer Tube Dia.: 48mm
- Weight: 8.5kg
- Wheel Dia.: 200mm
- Mount holes per side: 4
- Mounting Hole Dia.: 14mm
- Min Spacing (U1): 63mm
- Max Spacing (U2): 113mm

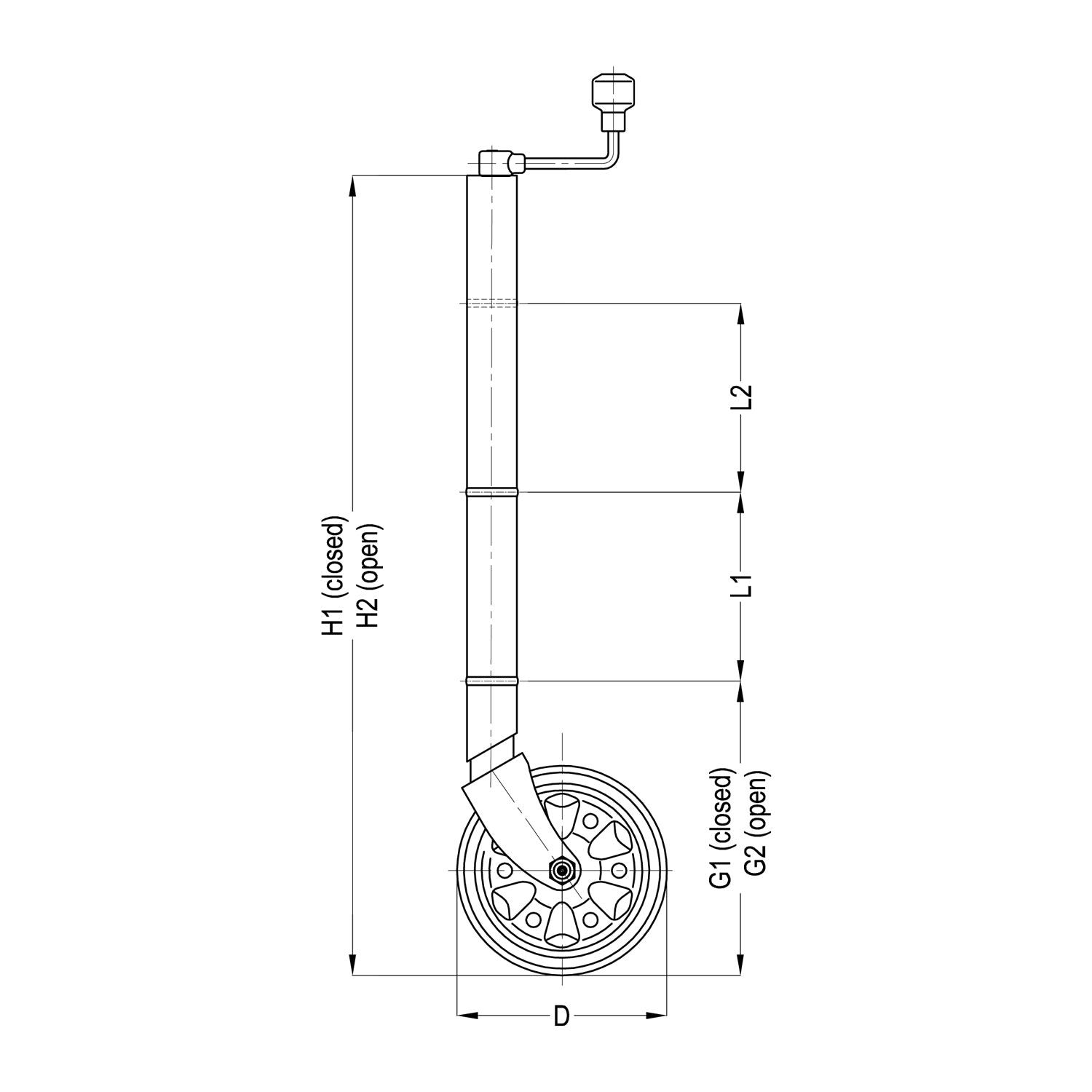

- Height Closed (H1):570mm
- Height Open (H2):820mm
- Bottom of wheel to mounting plate center when closed (G1): 310mm
- Bottom of wheel to mounting plate center when open (G2): 560mm
