AL - KO 8 INCH Side Handle Jockey Wheel - R&M Trailer Spares628500
AL - KO 8 INCH Side Handle Jockey Wheel - R&M Trailer Spares628500
AL - KO 8 INCH Side Handle Jockey Wheel - R&M Trailer Spares628500

AL‑KO Premium 8″ Side Wind Jockey Wheel with Clamp | 400 kg Load Capacity | Zinc-Plated

628500
Regular price
$129.00
Sale price
$129.00
Unit price
per
Tax included.
🚚 Fast Shipping Australia-wide
Most orders dispatch next business day from QLD.
Shipping is calculated at checkout based on your location.
View full shipping info

Overview

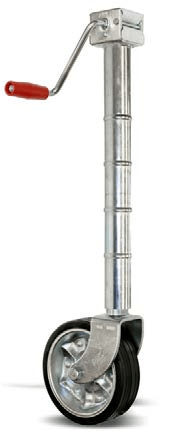

Introducing the genuine AL‑KO Premium 8″ Side Wind Jockey Wheel (P/N 628500) — the ideal solution where conventional top-wind jockey wheels face obstruction. Its side crank handle allows easy operation in tight spaces with gas bottles, toolboxes, or other drawbar-mounted accessories.

Key Features

  • 400 kg static load capacity – suitable for heavy trailers and caravans

  • Side wind gearbox handle – reduces winding effort and saves knuckles

  • 8″ (200 mm) solid rubber tyre on metal rim – built for soft or uneven terrain

  • Extra-wide multi-height clamp – weld-on or bolt-on mounting with 4‑ring adjustable design

  • Zinc-plated steel finish – corrosion-resistant for durability

  • Grease nipple included – for effortless maintenance and longer life

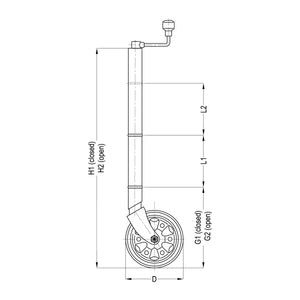

Specifications

Specification Detail
Brand AL‑KO Premium
Model / Part No. 628500
Wheel Size 200 mm (8″) solid rubber tyre
Shaft Diameter 48 mm
Static Load Capacity 400 kg
Closed Height Approx. 771 mm
Maximum Height Approx. 1037 mm
Lift Range Approx. 266 mm
Clamp Mounting Extra-wide 2-ring bracket – weld or bolt-on
Finish Zinc‑plated steel
Weight Approx. 7.5 kg

Ideal For

  • Caravan trailers

  • Boat trailers

  • Plant trailers or enclosed trailers with limited top-wind clearance

  • Configurations with gas bottles, battery boxes, or accessories mounted on drawbar

Shipping Info
All orders are dispatched next business day from QLD.
Shipping is calculated at checkout based on your location.
Warranty
All products are backed by a 12‑month manufacturer warranty.
Need Help?
Call our team on 07 3393 9463 for product advice and support.
