Overview

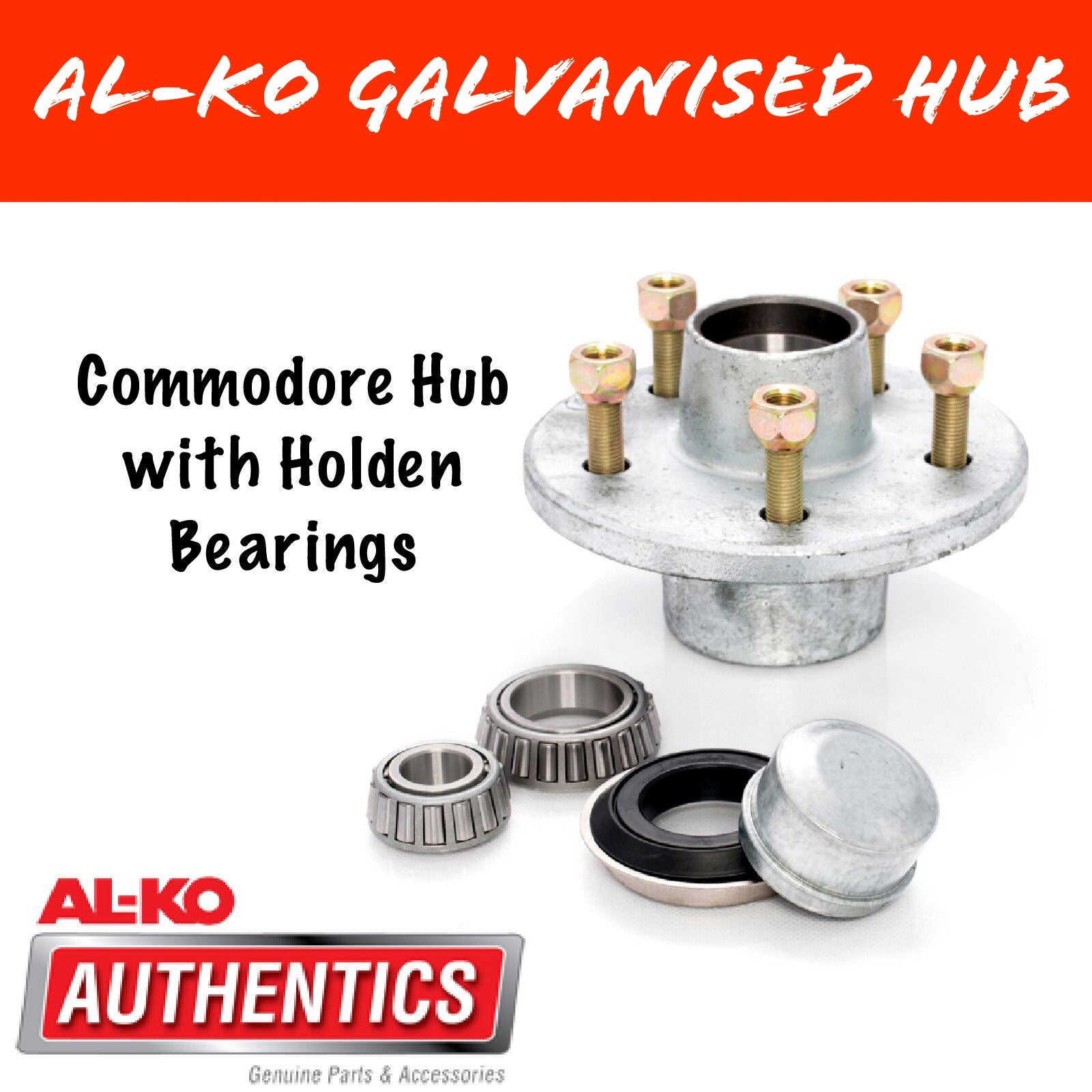

The AL‑KO 441280G is a heavy-duty 6″ galvanised trailer hub with a Commodore 5‑stud (120 mm PCD) bolt pattern. It comes pre-assembled with Holden LM series bearings, a marine-grade grease seal, and dust cap—ready for lazy axle applications in coastal or off-road environments.

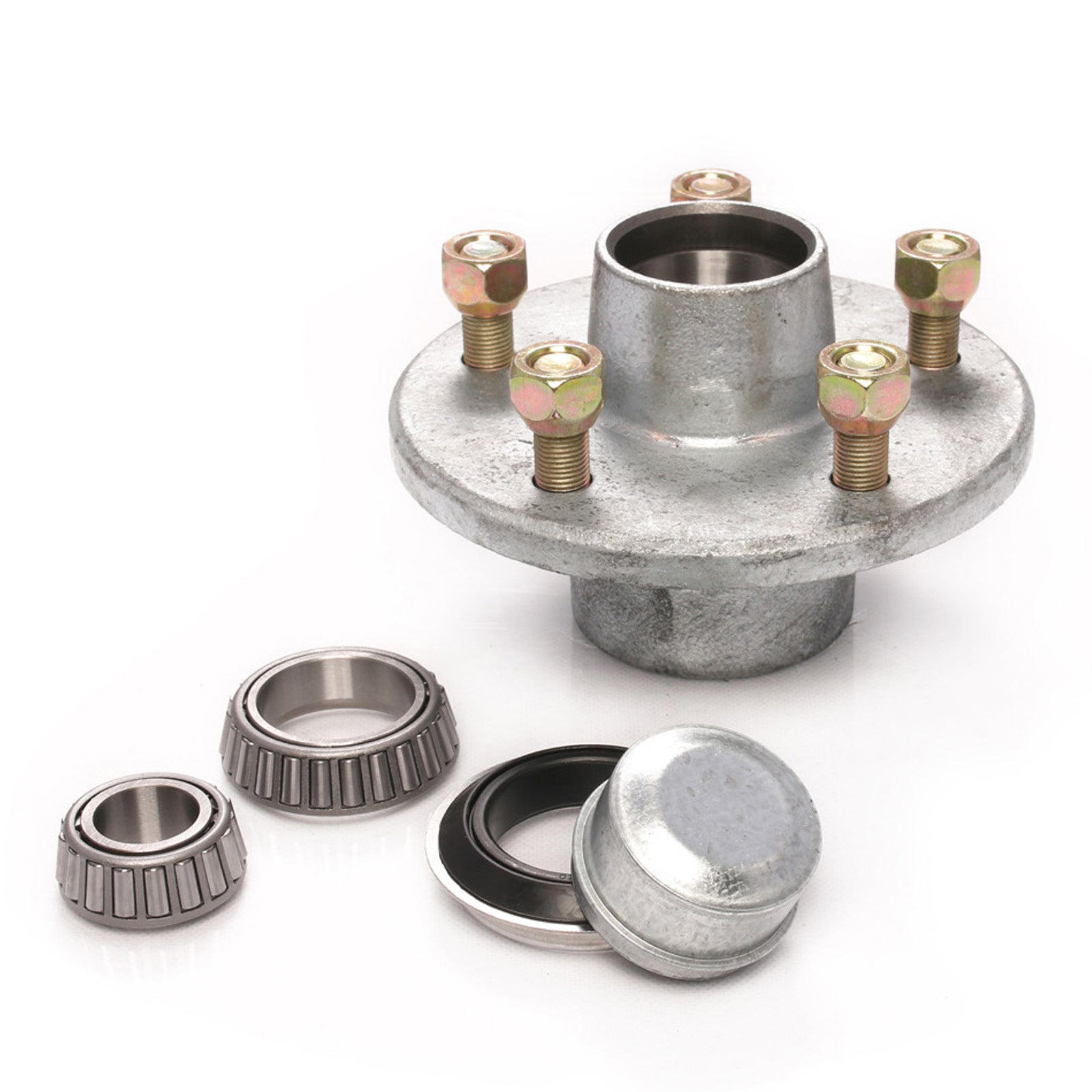

✅ What’s Included
-
1 × Galvanised 6″ hub
-
5 × 7/16″ UNF studs and nuts
-
Inner bearing: LM67048
-
Outer bearing: LM11949
-
Marine seal
-
Dust cap
⚙️ Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | 441280G |
| Hub Type | 6″ Galvanised lazy hub |
| Stud Pattern | 5‑on‑120 mm (Commodore PCD) |
| Stud Size | 7/16″ UNF |
| Inner Bearing | LM67048 (ID: 31.75 mm) |
| Outer Bearing | LM11949 (ID: 19.05 mm) |
| Seal | Marine-style seal (1.50" ID × 1.98" OD) |
| Finish | DACROMET Galvanised |
| Included Hardware | Nuts, bearings, seal, grease cap |
| Approx. Load Rating | ~1,450 kg per pair (LM bearing limit) |
| Application | Lazy axle (unbraked) |
🛠 Applications & Installation Notes
-
Designed for boat trailers, camper trailers, and box trailers using lazy axles
-
Suitable for wheels with 5‑stud Commodore pattern
-
DACROMET finish is ideal for marine/coastal conditions
-
Use high-temp marine grease
