Overview
This AL-KO bearing kit includes precision Japanese-manufactured tapered roller bearings for Holden LM-style trailer hubs. Featuring LM11949 (outer) and LM67048 (inner) cone + cup pairs, plus a high-quality grease seal, this set is ideal for 1.4 t to 1.6 t single-axle trailers, including campers, box trailers, and small boat trailers.
Built for long-lasting reliability, this kit is perfect for those looking to upgrade to Japanese bearings in their AL-KO hub assemblies.

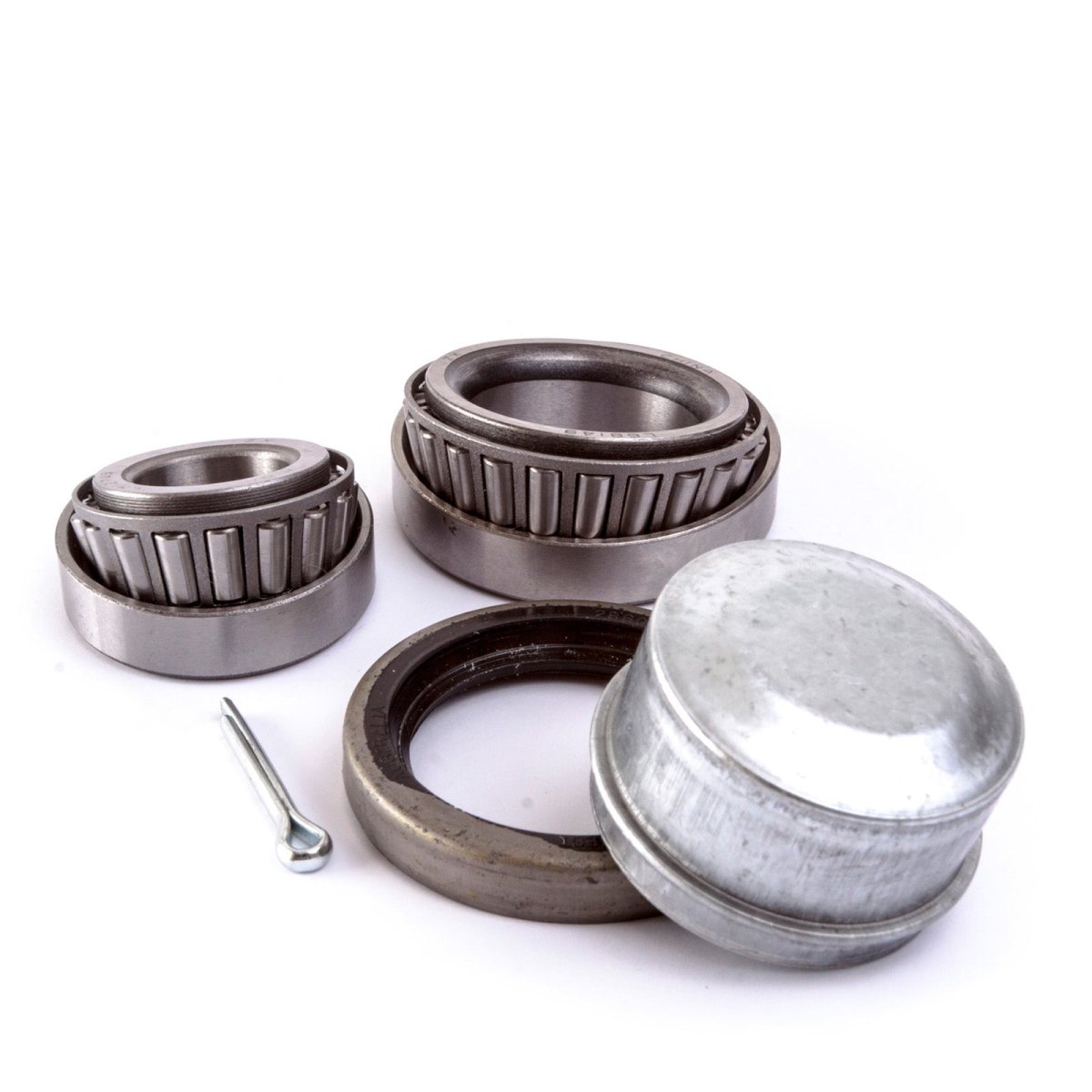

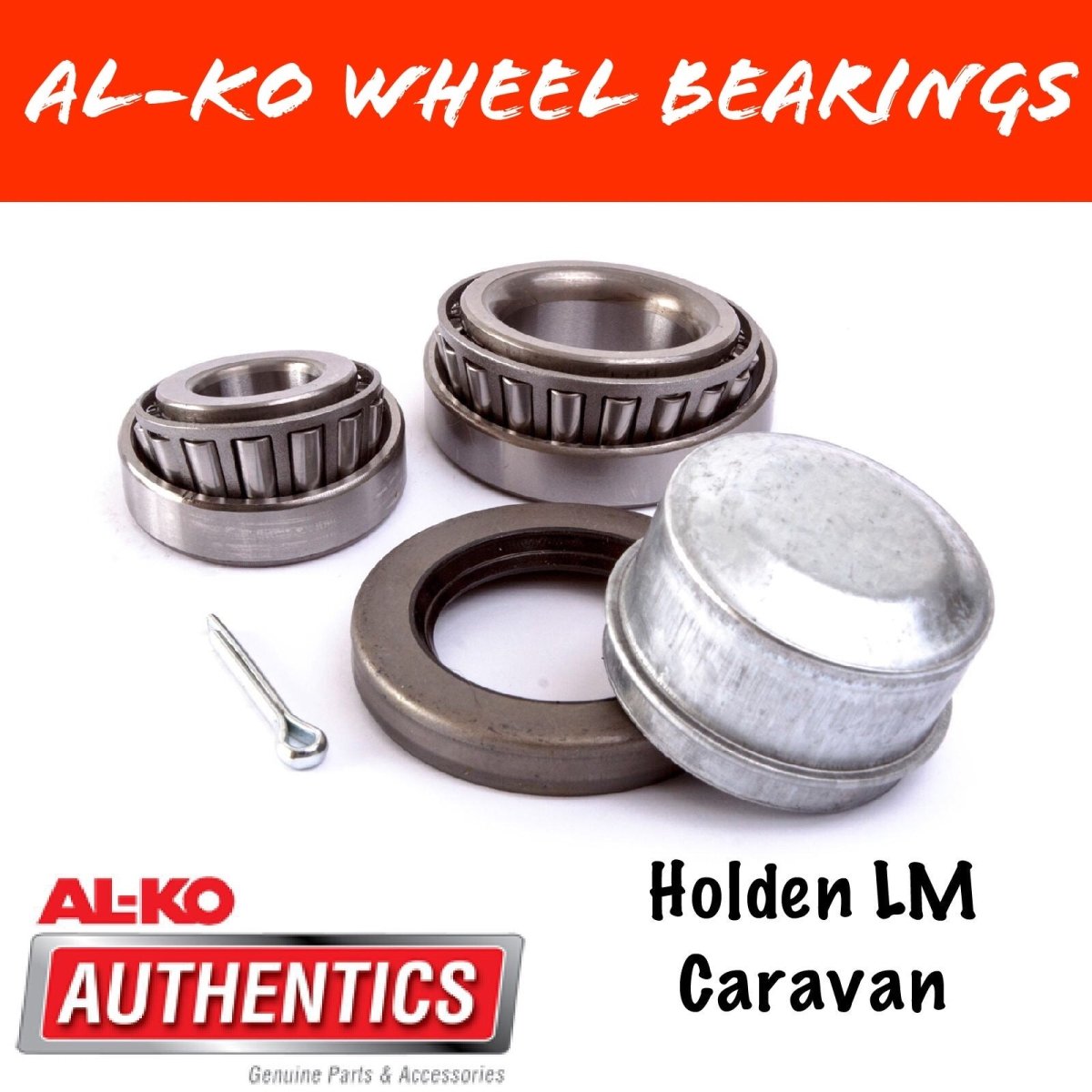

What’s Included
-
1 × LM67048 Cone (inner)
-
1 × LM67010 Cup (inner)
-
1 × LM11949 Cone (outer)
-
1 × LM11910 Cup (outer)
-
1 × Grease Seal (suits Holden LM hub – ~37.5 mm ID)
Brand: Bearings are Japanese-manufactured (typically Koyo, NTN, or NSK depending on stock)
⚙️ Technical Specifications
| Component | Inner Bearing Set | Outer Bearing Set |
|---|---|---|
| Cone + Cup | LM67048 + LM67010 | LM11949 + LM11910 |
| Inner Diameter (ID) | 31.75 mm | 19.05 mm |
| Outer Diameter (OD) | 59.13 mm | 45.24 mm |
| Dynamic Load Rating | ~36.2 kN | ~20.1 kN |
| Seal Type | Grease Seal (included) | – |
| Country of Origin | Japan | Japan |
✅ Why Choose This Kit?
-
Japanese bearings ensure quiet, long-lasting hub performance
-
Includes both cone + cup for each bearing position
-
Direct fit for Holden LM-style 1.4 t – 1.6 t AL‑KO hubs
-
Ideal for both highway and off-road use
-
Perfect for trailer maintenance, axle rebuilds, and hub servicing
Applications & Use Cases
-
Box trailers, light campers, and small boat trailers
-
AL‑KO Holden LM hubs on 1.4–1.6 T axles
-
Suitable for road or off-road use
-
Works with most standard LM Holden bearing kits
Shipping is calculated at checkout based on your location.
