Overview

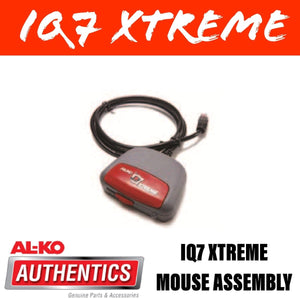

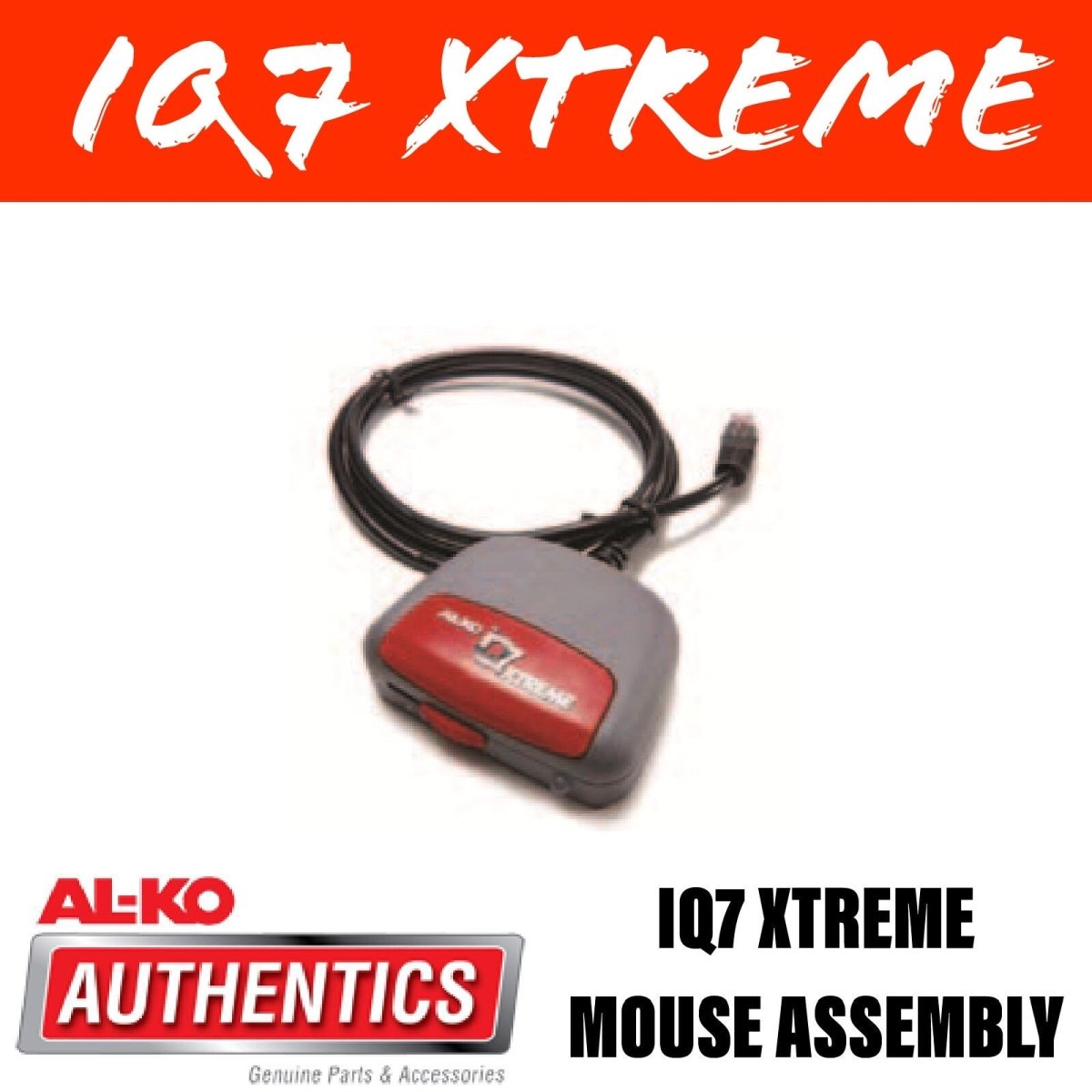

The AL‑KO iQ7 XTREME Mouse Controller (P/N 355008) is a driver‑facing control unit that integrates with the AL‑KO iQ7 XTREME trailer brake actuator. Its intuitive design ensures safer and more responsive braking from within the cab.
Key Features
-
Panic Button (Antisway brake): Instant trailer braking for 3 seconds with brake light activation to correct sway
-
Gain Control Slider: Easily adjust trailer braking power to sync with tow vehicle braking pressure
-
LED Indicator: Displays system mode—green when idle; orange during braking, intensity reflects braking force
Compatibility
-
Compatible exclusively with AL‑KO iQ7 XTREME brake actuator systems (P/N 355002)
-
Not compatible with earlier Sensabrake LT1000E or standard iQ7 units
Installation Notes
-
Mount dashboard unit within easy reach; secure firmly to avoid accidental operation
-
Run the single cable to the XTREME controller under dash; plug in fully
-
Do not install near vehicle electronics like throttle modules to avoid interference
-
Follow LED signals for diagnostics; a repeating beep or red error indicator may suggest a fault
Warranty & Shipping
-
Ships from Brisbane; most orders are dispatched next business day
-
Covered by AL‑KO 12-month OEM warranty – valid when installed with genuine iQ7 XTREME components
