Overview

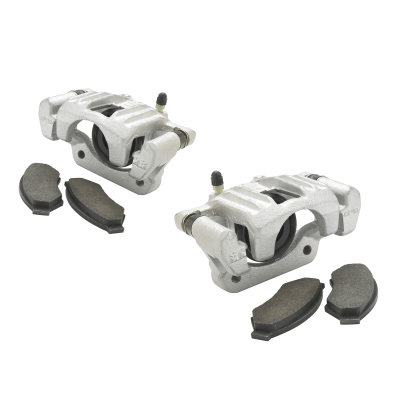

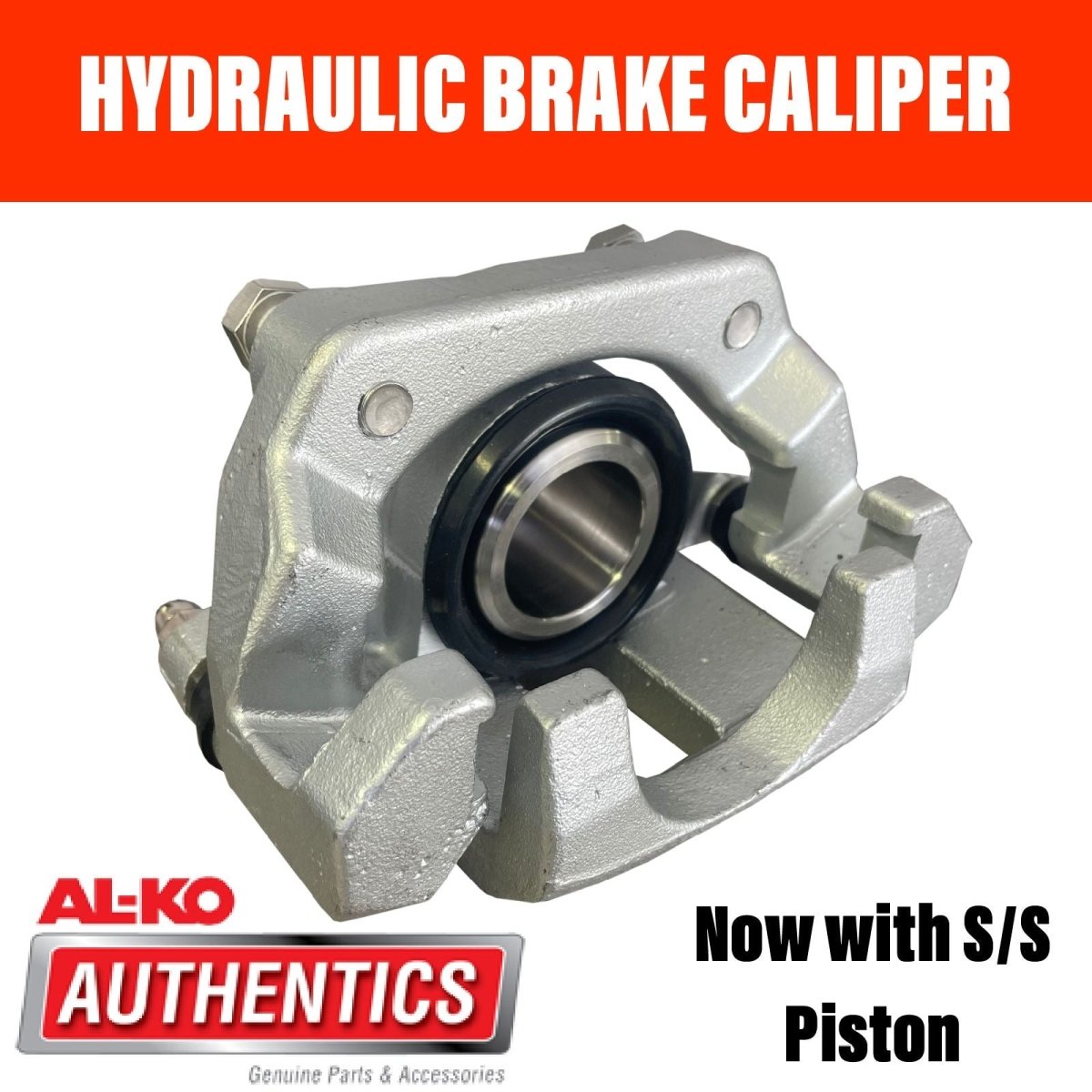

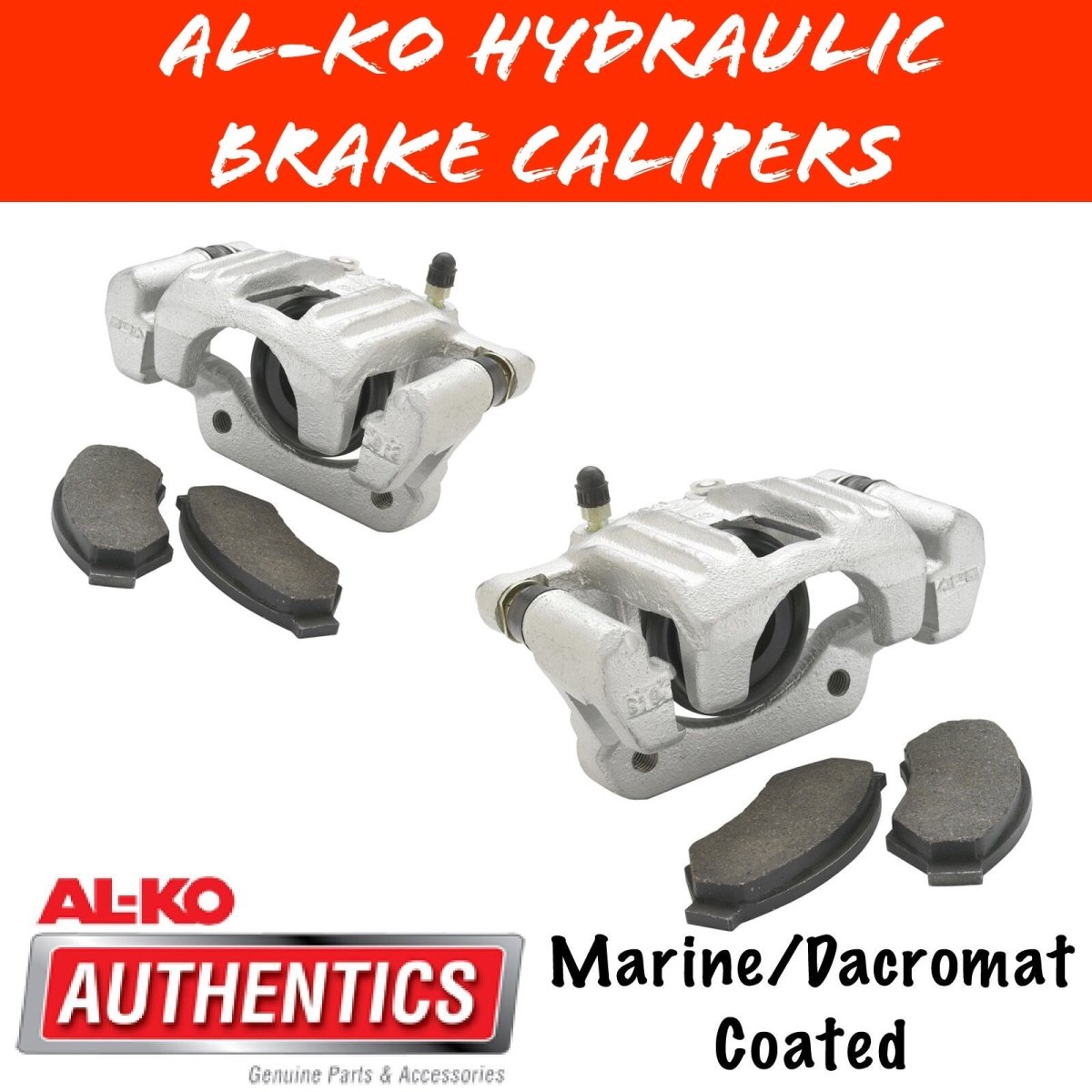

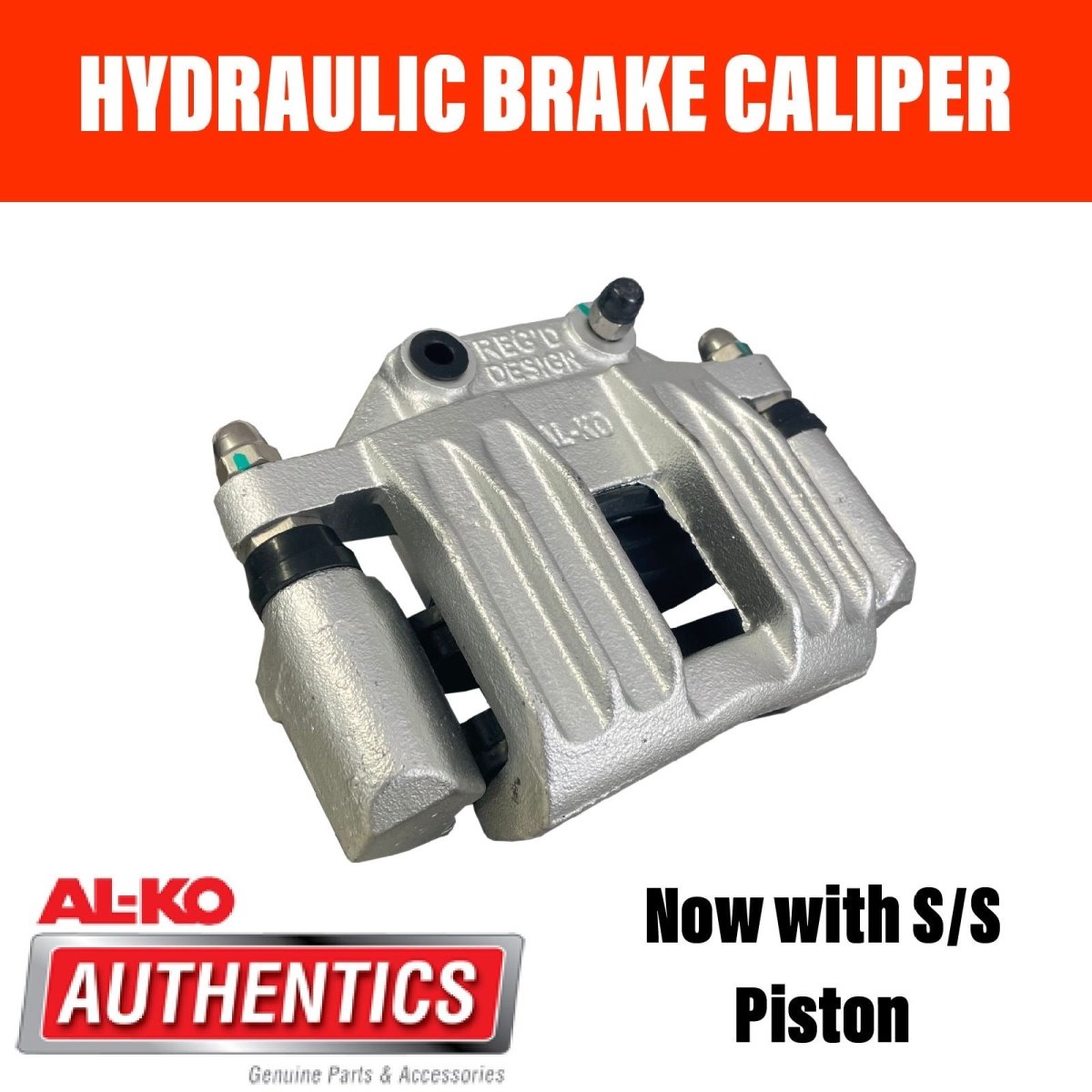

This genuine AL‑KO hydraulic disc brake calipers (P/N 341001) comes in a durable DACROMET-coated cast iron body and features a stainless-steel piston for excellent corrosion resistance—ideal for marine, boat, caravan, and trailer applications. Compatible with rotors of 12 mm to 15 mm thickness, it fits with 13″–16″ wheels. Recommended operating pressure: 6.9 MPa (1000 psi)
This caliper is a side‑neutral unit (left or right fit by rotating the bleed screw position), making it flexible and easy to install in either orientation
🔧 Key Features
-
✅ Genuine AL‑KO Hydraulic Caliper, DACROMET-coated with stainless piston
-
✅ Suitable for rotor thicknesses from 12 mm to 15 mm
-
✅ Compatible with 13″–16″ disc wheel sizes
-
✅ Recommended axle loads:
-
13″/14″ wheels → up to 1,600 kg per axle
-
15″/16″ wheels → up to 1,400 kg per axle
-
-
✅ 88.9 mm (3.5”) center-to-center mounting holes, using 12 mm high-tensile set screws
-
✅ The caliper body itself is non-handed; orientation is set by the bleed screw position
-
✅ Pads included with caliper when sold as pair or single unit
-
✅ Fully compatible with AL‑KO IQ7 and traditional hydraulic override couplings
📋 Specifications
| Specification | Details |
|---|---|
| Part Number | 341001 (Pair) |
| Finish & Material | DACROMET-coated cast iron, stainless piston |
| Rotor Compatibility | 12–15 mm thick disc |
| Mounting Hole Spacing | 88.9 mm (3.5") |
| Bolt Size | 12 mm High-Tensile set screws |
| Axle Load Rating | 1,600 kg (13″/14″), 1,400 kg (15″/16″) |
| Operating Pressure | 6.9 MPa (1,000 psi) |
| Installation Fitment | Non-handed, bleed screw position sets LH/RH |
| Pads Included | Yes – organic pads |
Shipping is calculated at checkout based on your location.
- AL‑KO Marine Hydraulic Brake Calipers with Dacromet coating
- Includes stainless steel piston—resists rust in marine environments
- Recommended load capacity: 1,600 kg per axle (13–14″ wheels); 1,400 kg (15–16″)
- Mounting size: 88.9 mm (3.5″) centre-to-centre via 12 mm set screws
- Suits disc hubs with 12–15 mm rotor thickness
- Designed for use with AL‑KO iQ7 or over-ride coupling systems
- Backed by trusted AL‑KO engineering and durable finish
- Sold per axle (pair of calipers) — each includes pads and hardware
