AL‑KO Mechanical Disc Brake Caliper – Genuine Heavy‑Duty Forward Pull Option

Durable Mechanical Disc Brake Caliper for Australian Trailer Braking Systems

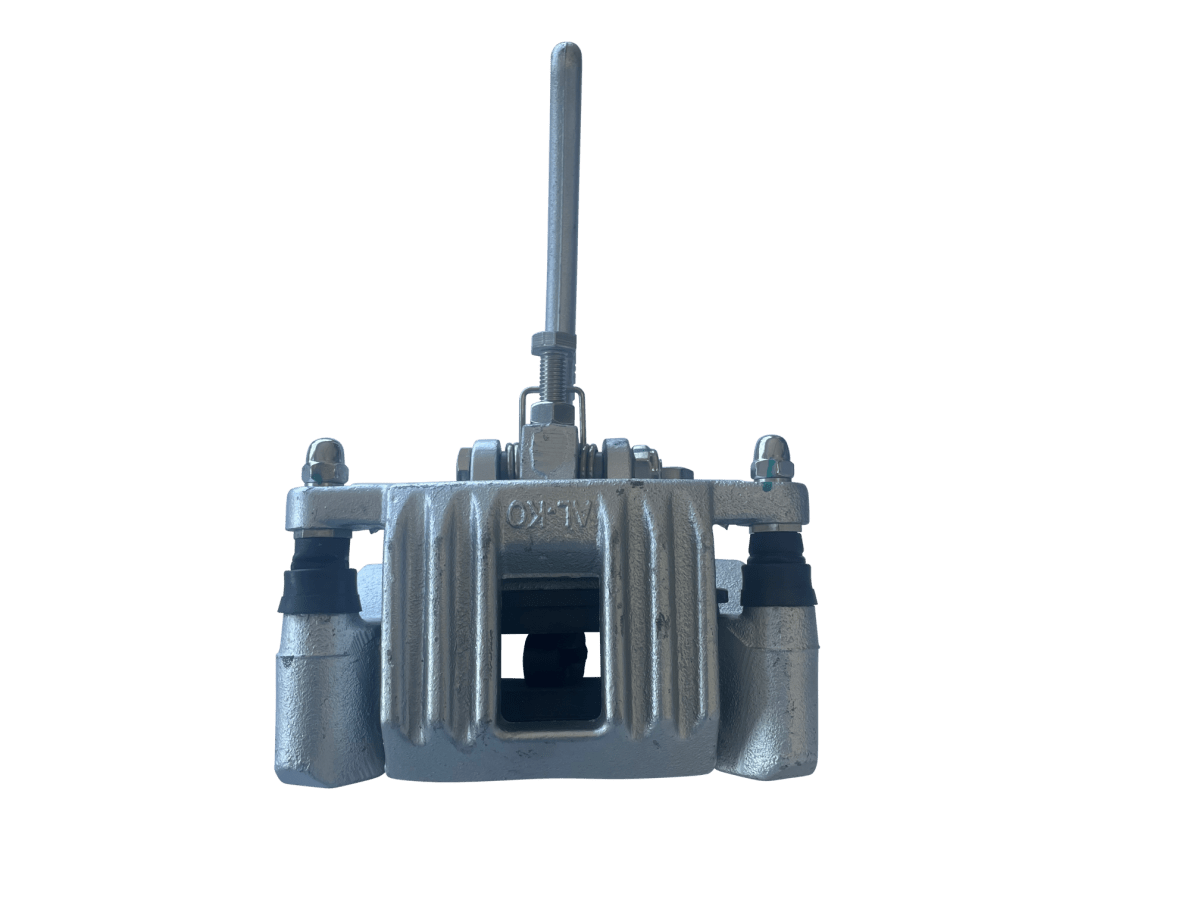

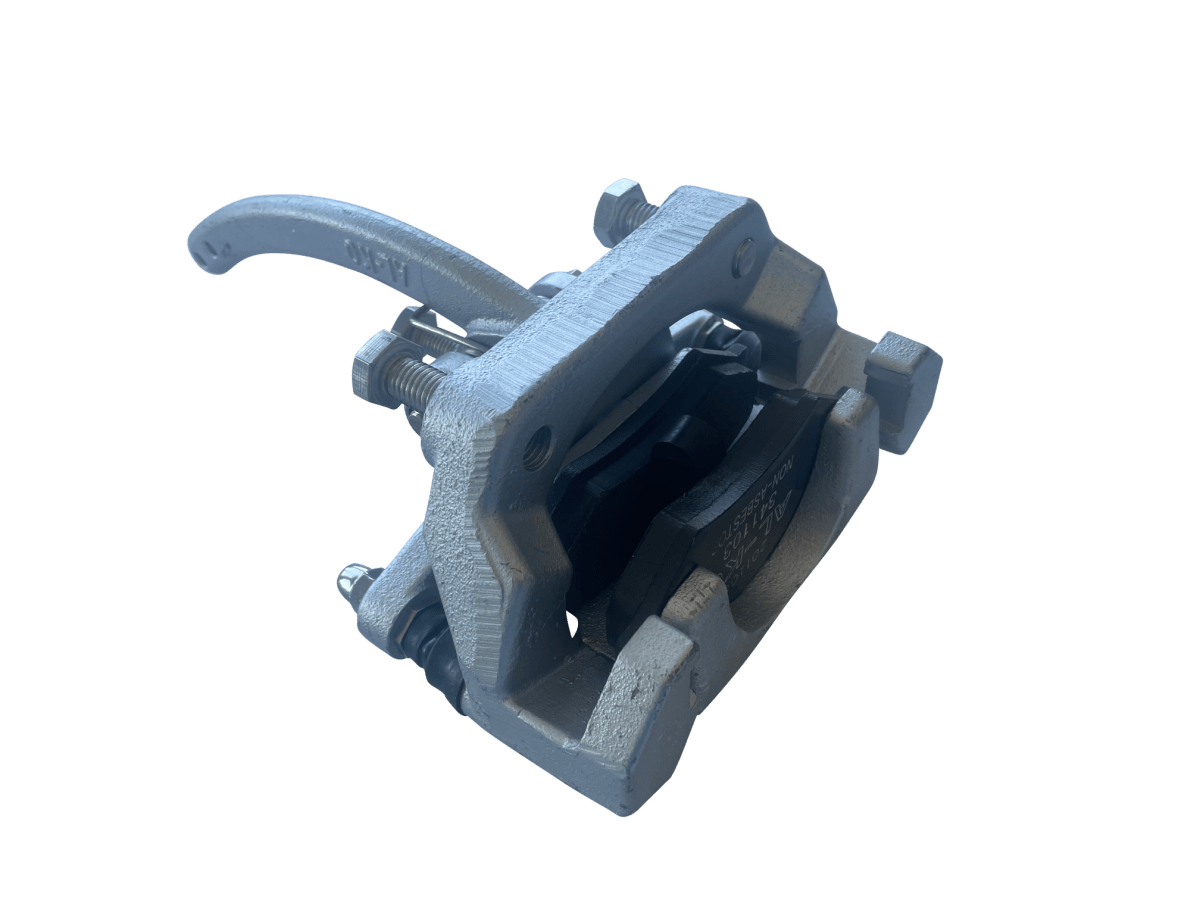

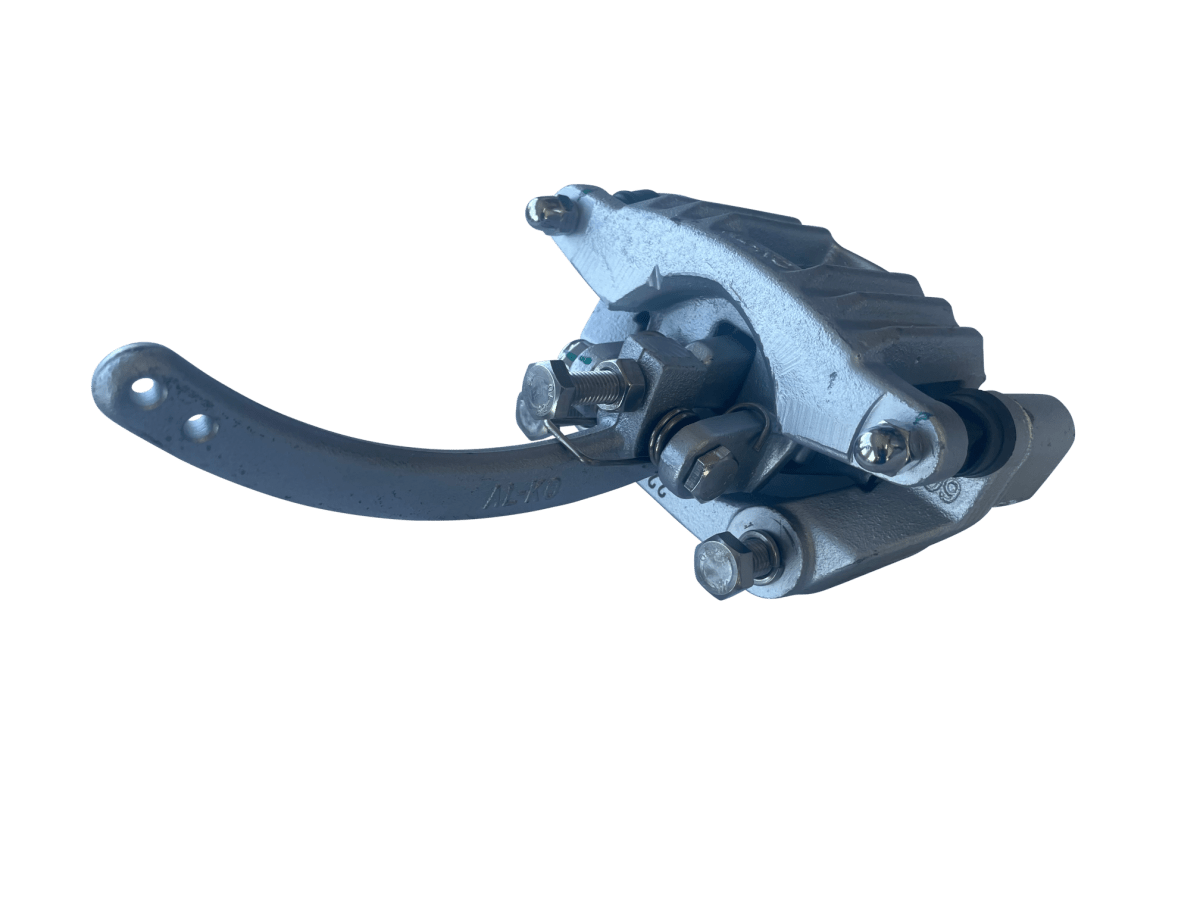

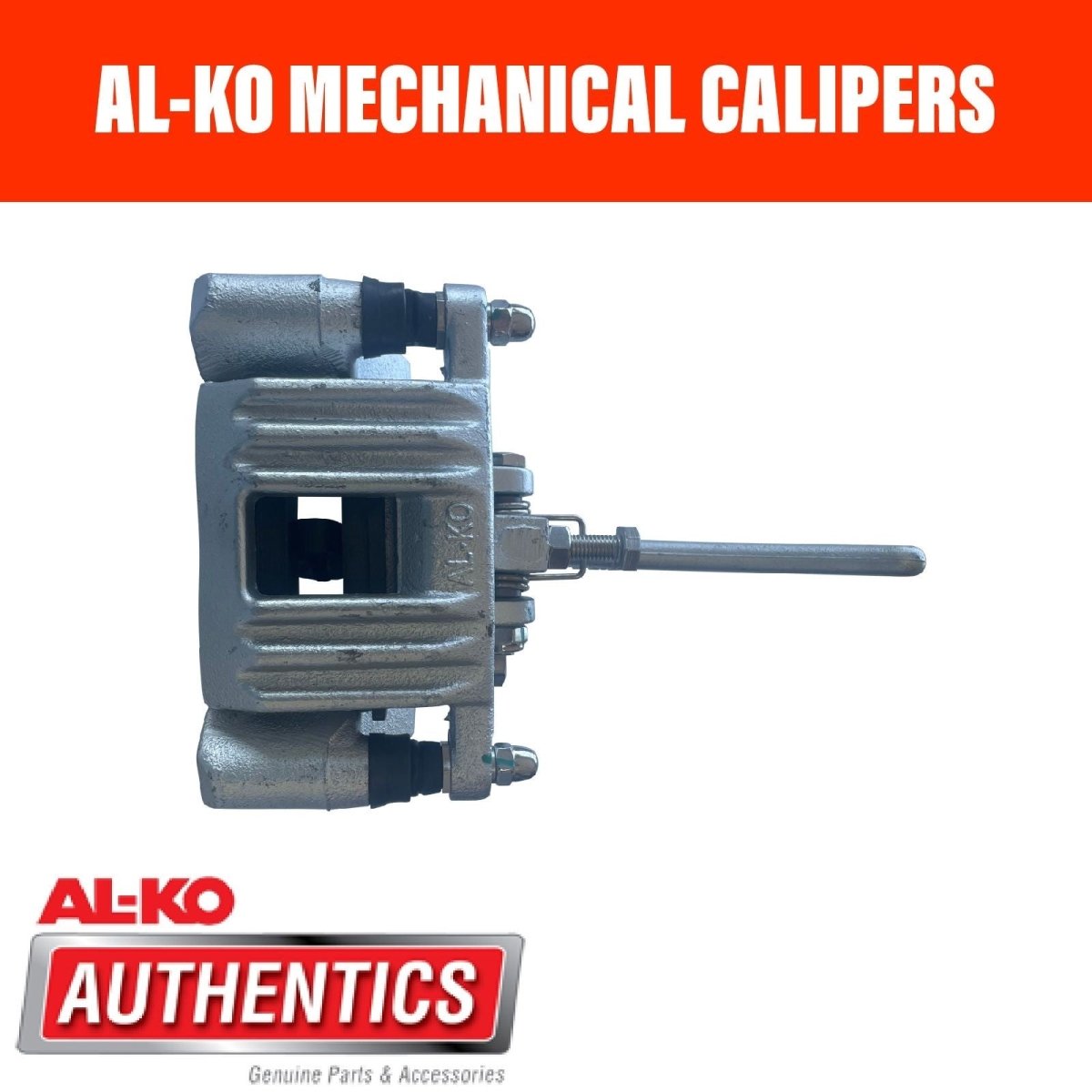

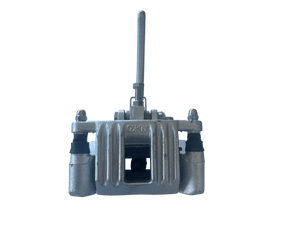

Built to AL‑KO’s exacting standards, this mechanical disc caliper is the heavy‑duty forward‑pull version (P/N 323800), designed for caravan or trailer systems in harsh Aussie environments.

🔧 Product Overview

• AL‑KO Part Number: 323800 (sold individually)

• Style: Heavy‑Duty Forward Pull Mechanical Caliper

• Configuration: One‑piece assembly for ready installation on either left or right side

📌 Technical Specifications (Heavy Duty Model)

• Load Capacity: Up to 2000 kg per pair on 13″/14″ wheels; 1700 kg on 15″/16″ wheels

• Mounting Centres: 88.9 mm (3.5″) with 12 mm bolts

• Max Cable Pull Input: 300 kg per brake

• Rotor Compatibility: Disc thickness 12 mm – 15 mm

✅ Key Features and Benefits

• Corrosion-Resistant Construction: Dacromet® coated caliper body with stainless steel bushes, springs, and bolts for long-term saltwater durability

• Fast Cooling Braking Efficiency: The open disc system allows rapid cooling and resistance to fade under heavy use

• Simple, Servicable Design: Cable-actuated system is easy to maintain for DIY trailer mechanics—ideal for cost-effective service

📦 Includes

• Single forward-pull mechanical disc brake caliper (323800)

• Mounting hardware (bolt not included)

🚚 Shipping & Warranty

• Shipping: Dispatches next business day from Queensland, Australia

• Warranty: 12‑month manufacturer warranty included

🔧 Tip: Always replace in matched pairs and ensure compatible brake pads (AL‑KO 341103) and mounting plates (refer to AL‑KO part library). Proper cable tension and periodic inspection ensure optimum braking performance.
