Overview

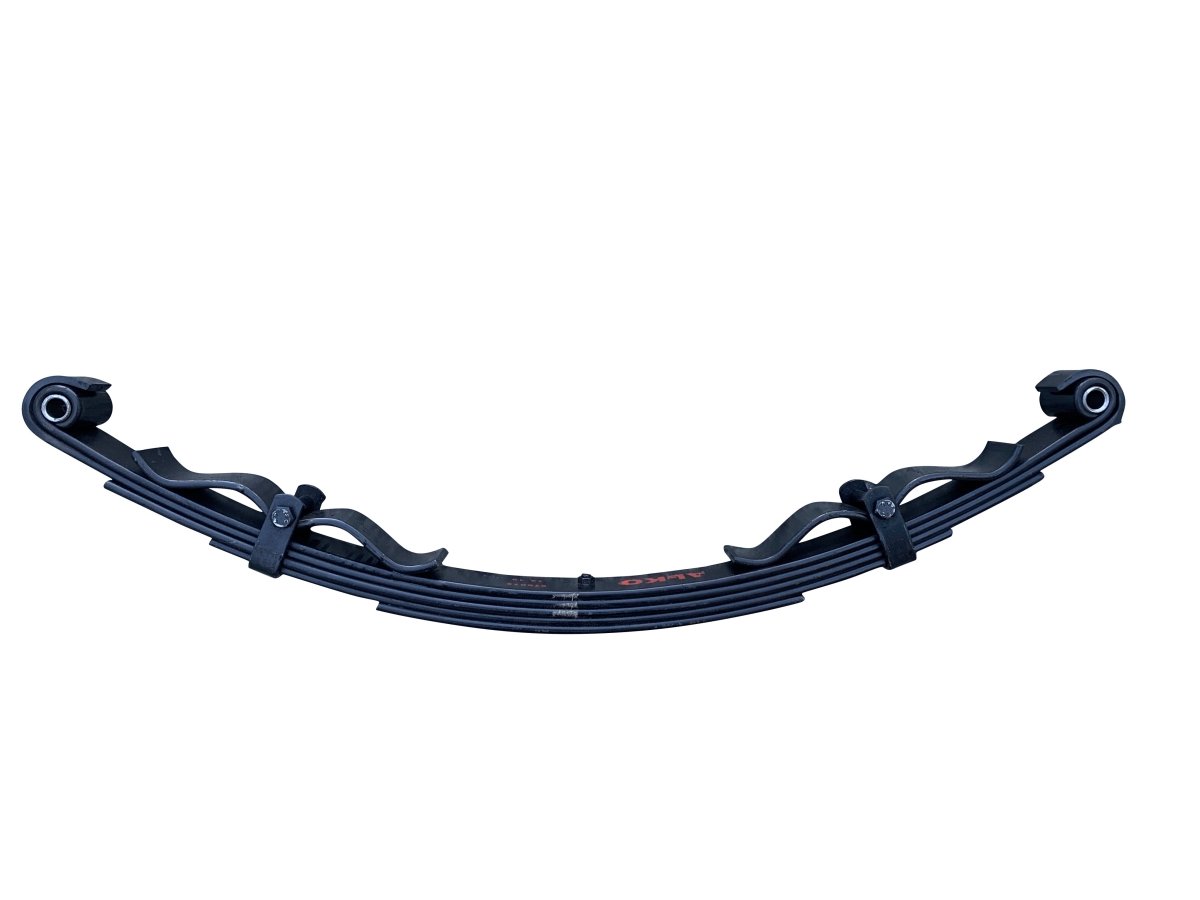

The AL‑KO Outback Rebound 5‑Leaf Shackle‑Eye Spring is designed for off‑road trailers and caravans, offering reliable suspension performance at a mid‑range load rating. With a 1,150 kg per pair rating and 60 mm leaf width, it’s built to withstand the rigours of rugged Australian terrain. It comes with mounting plates and M16 greaseable shackle bolts, making installation straightforward.
🔧 Key Features
-
✅ 5‑leaf shackle-eye spring, rated 1,150 kg per tandem pair
-
✅ 60 mm wide leaves, ideal for moderate load off‑road towing
-
✅ Includes mounting plates and M16 greaseable shackle bolts
-
✅ Heavy-duty black finish, corrosion‑resistant and weatherproof
📋 Specifications
| Feature | Specification |
|---|---|
| Part Number | 536075 |
| Leaf Count | 5 |
| Load Rating (Pair) | ~1,150 kg |
| Leaf Width | 60 mm |

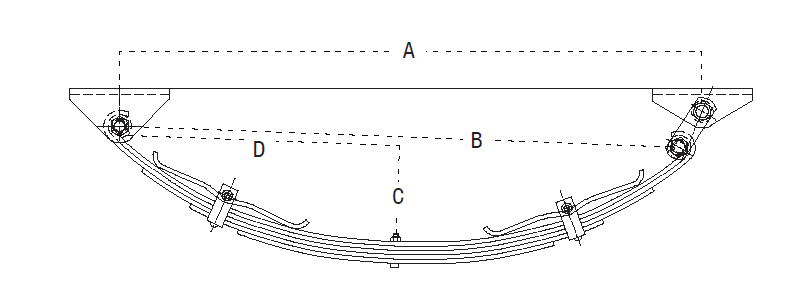

| Eye‑to‑Eye Length (B) | ~841 mm |
| Installed Length (A) | ~865 mm |
| Free Camber (C) | ~158 mm |
| Bolt Distance (D) | ~420 mm |
| Shackle Bolt Diameter | 16 mm greaseable (M16) |
| Bush Size | 5/8″ × 7/8″ × 60 mm |
| Finish | Black |
| Includes | Spring, mounting plates, M16 bolts & nyloc nuts |
