Overview

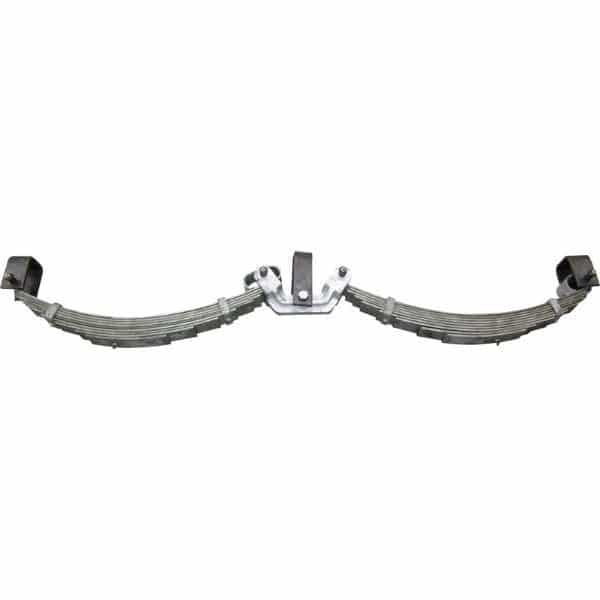

This is a genuine AL‑KO 5‑leaf roller rocker spring, built for tandem axle trailers using 14″ wheels. Designed in 60 mm width with a robust black finish, each spring is sold individually—choose either Left-Hand (LHS) or Right-Hand (RHS) variant as required
Engineered to support moderate loads (~950–1,100 kg per pair), it delivers dependable suspension performance for utility, camper, and light trailer applications.
🔧 Key Features
-
Side-specific variants (LHS or RHS), sold separately
-
5‑leaf, 60 mm wide design for load-support and flexibility
-
Roller rocker suspension for balanced weight distribution
-
Durable black finish rated ~950–1,100 kg per pair
-
Ideal for standard trailer configurations requiring tandem spring setups.
📋 Specifications
| Feature | Value |
|---|---|
| Spring Width | 60 mm |
| Leaf Count | 5 |
| Compatible Wheel Size | 14″ |
| Finish | Black |
| Part Number | 576451 (RHS) and 576450 (LHS) |

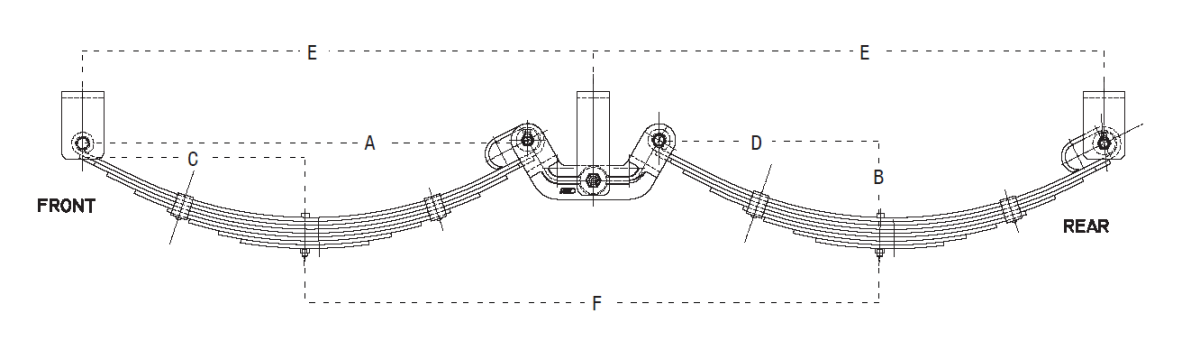

| Dimensions (A–F) | A = 687 mm, B = 117 mm, C = 396 mm, D = 291 mm, E = 787 mm, F = 785 mm |
| Load Capacity (Per Pair) | ~950 – 1,100 kg |
📦 Package Contents
-
Two 5‑leaf springs (select LHS or RHS)
-
Centre rocker pivot bracket
-
Two steel rollers
-
Front, centre & rear spring mounts
-
Five mounting bolts
⚠️ Note: This spring is side‑specific and sold per side. To complete a tandem suspension system, add both LHS and RHS spring assemblies.
