Overview
This item is a genuine AL‑KO 7‑leaf roller rocker spring, designed for tandem axle trailers using 14-inch wheels. Available in either Left-Hand (LHS) or Right-Hand (RHS) variant (P/N 576470 for LHS, 576471 for RHS), each unit is sold per side to match trailer configuration.
Constructed with a 60 mm width and rugged 7‑leaf design in a durable black finish, it offers dependable support and smooth handling across both roadway and light off-road conditions.
🔧 Key Features
-
✅ Side-specific variants—LHS or RHS, sold per side
-
✅ 60 mm × 7‑leaf spring designed for robust tandem axle performance
-
✅ Roller rocker suspension system enhances load sharing and ride stability
-
✅ Heavy-duty black finish for standard trailer use
-
✅ Rated load capacity: ~1,300–1,500 kg per pair
📋 Specifications
Feature | Details |
---|---|
Spring Width | 60 mm |
Leaf Count | 7 |
Finish | Black |
Compatible Wheel Size | 14″ |
Part Numbers | 576470 (LHS), 576471 (RHS) |

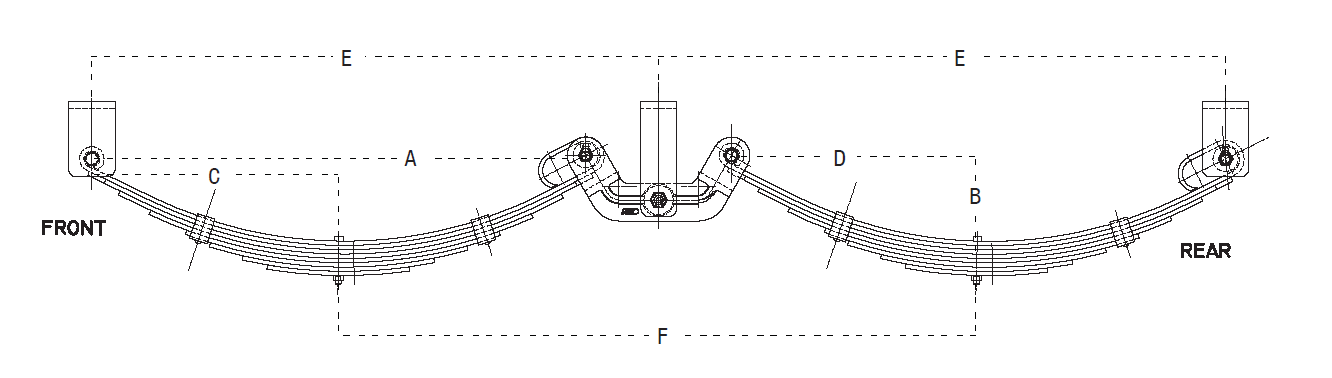

Dimensions (A–F) | A 687 mm, B 117 mm, C 396 mm, D 291 mm, E 787 mm, F 785 mm |
Load Capacity (Pair) | ~1,300–1,500 kg |
📦 Included in the Package
-
Two 7‑leaf springs (choose LHS or RHS)
-
Centre rocker pivot bracket
-
Two steel rollers
-
Front, centre & rear mount plates
-
Five mounting bolts
⚠️ Note: This product is sold per side. To complete a tandem axle setup, you must order one LHS and one RHS spring assembly.
