Overview

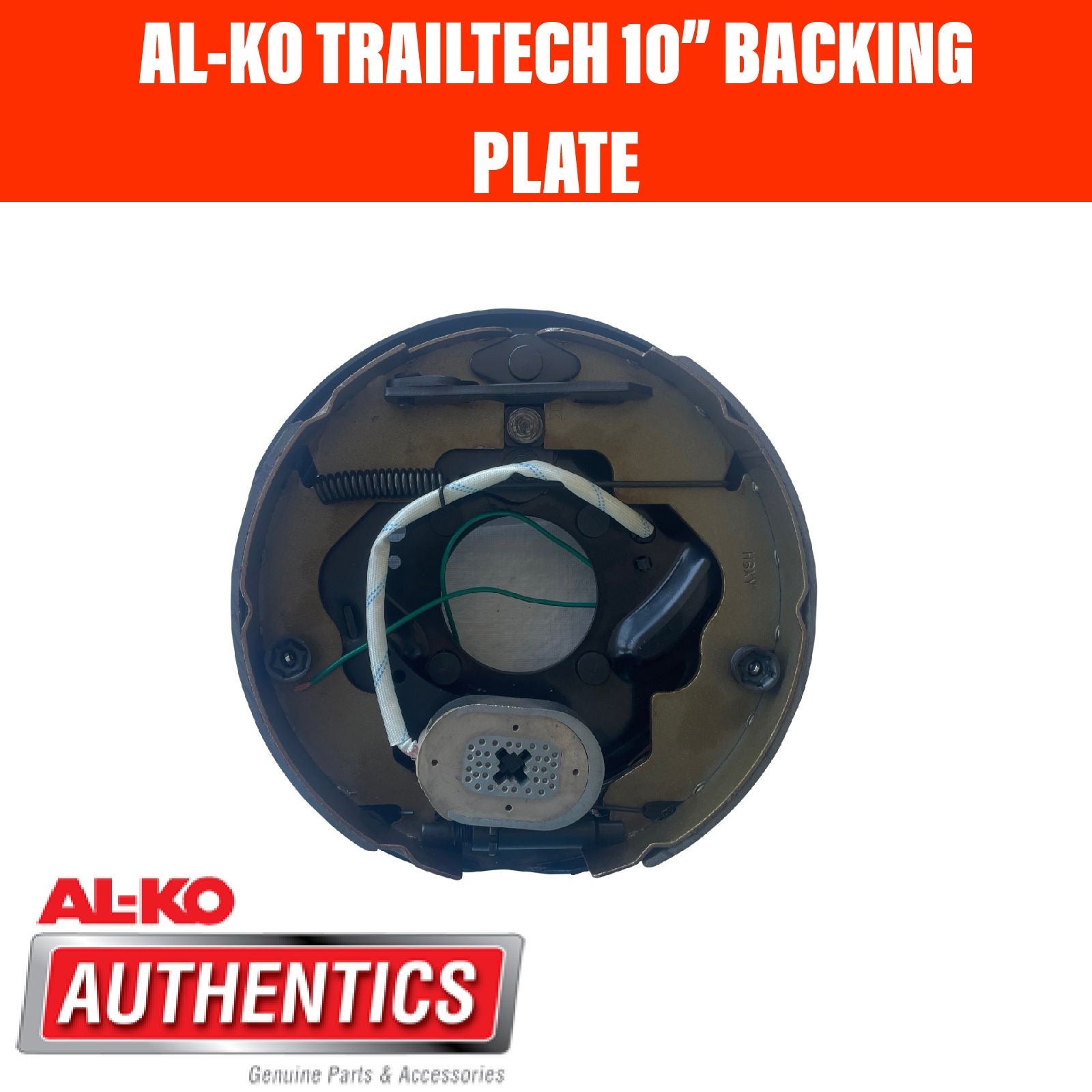

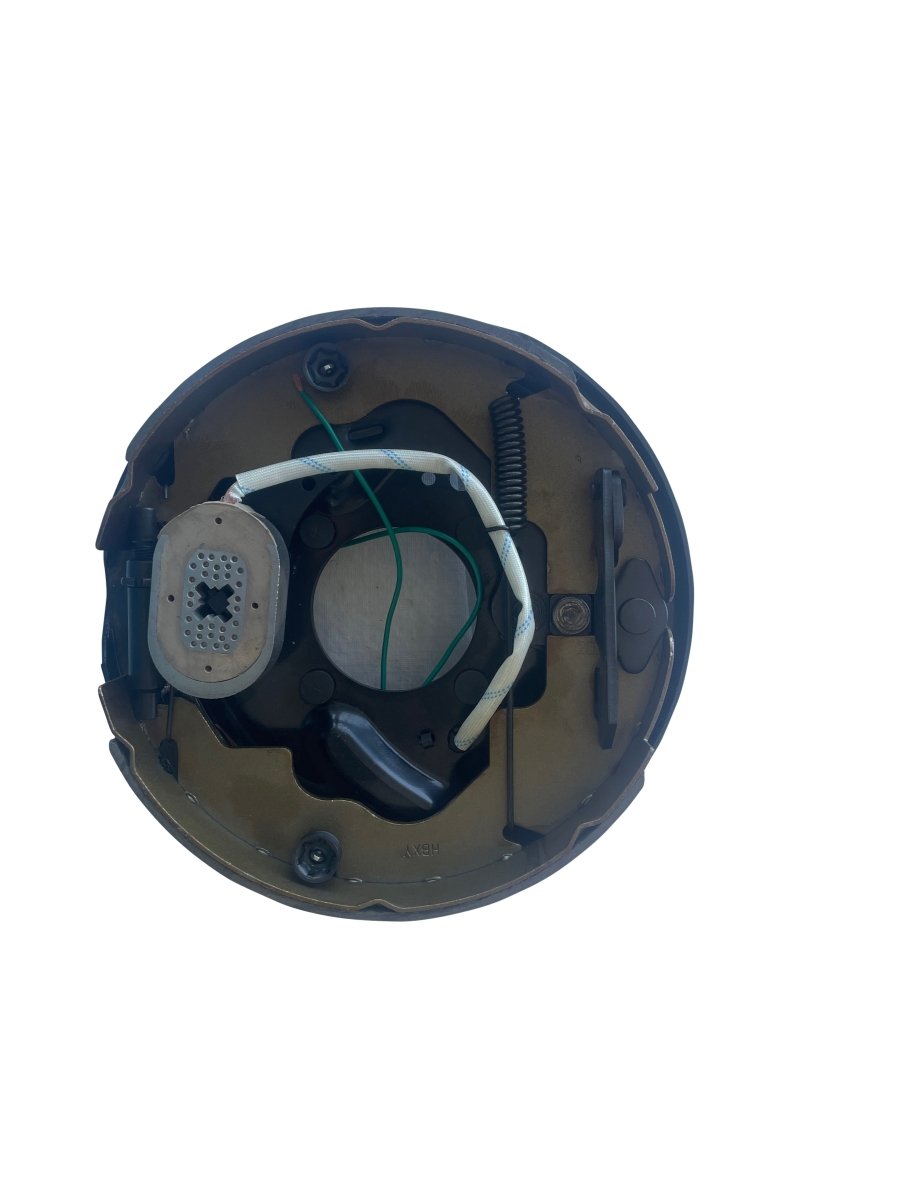

This is the genuine AL‑KO Trailtech 10″ electric backing plate – right-hand side, with a built-in park brake lever. Engineered for efficient and low-maintenance braking, it’s designed for 10″ × 2¼″ drum hubs, offering consistent performance across Australian towing conditions.
Main Features
-
Complete backing plate with electric magnet, brake shoes, hand‑park lever, springs, adjuster, and wiring eyelet
-
Designed for 10″ × 2¼″ electric drum brakes with a 4‑bolt 7/16″ UNF × 76 mm PCD mounting pattern
-
Integrated manual hand lever allows operator-applied trailer braking independently from tow vehicle brakes
Technical Specifications
| Specification | Detail |
|---|---|
| Side | Right-hand (RHS) as facing rear of trailer |
| Compatible Drum Size | 10″ × 2¼″ (≈254 mm × 57 mm) |
| Mount Pattern | 4 × 7/16″ UNF bolts on 76 mm PCD |
| Park Brake Mechanism | Yes – lever-integrated |
| Suitability | Standard AL-KO trailer & caravan axles |
| Warranty | 12-month manufacturer warranty |
| Load Guidance | Resolves within typical AL-KO axle setups |
Shipping Info
All orders are dispatched next business day from QLD.
Shipping is calculated at checkout based on your location.
Shipping is calculated at checkout based on your location.
Warranty
All products are backed by a 12‑month manufacturer warranty.
Need Help?
Call our team on 07 3393 9463 for product advice and support.
