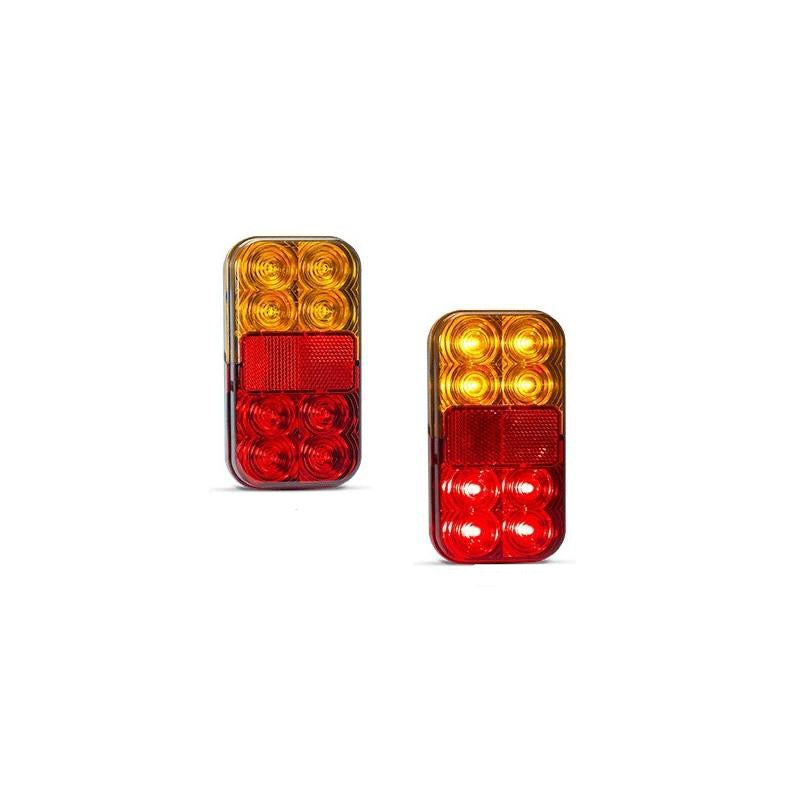

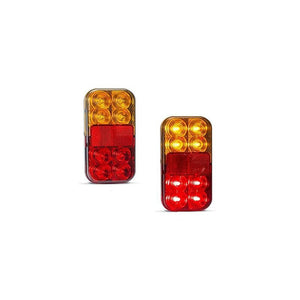

LED AUTOLAMPS 149 SERIES MARINE LED LIGHT
P/N:149BARL4P
Plug In Version LHS Light Only
Features / Specifications
1x LHS Light
- New Combination Lamp
- ECE approved
- Vertical or Horizontal Mount Options
- IP67 100% Water proof
- 12 Volt

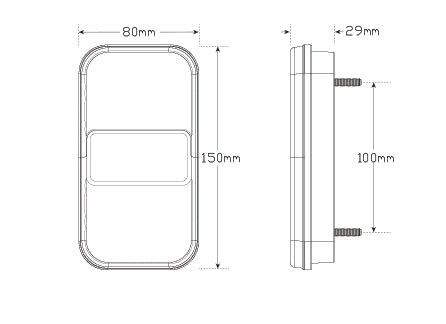

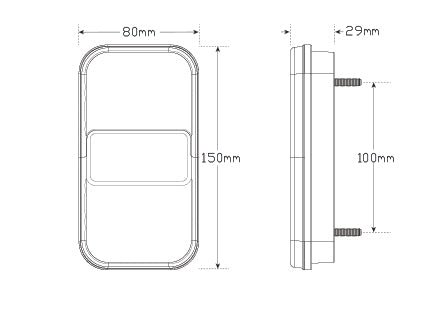

- 150mm x 80mm x 29mm
Fitting Instructions
Surface mount onto flat surface vertically with Indicator at top using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.
| LED Qty | 8+4 Licence | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.05A | 0.07A | 0.08A |
| @28V | 0.073A | 0.079A | 0.067A |
| Approvals | Function | Approval No. | |
| ECE | Stop/Tail | R1-S1-E9-02.11712 | |
| ECE | Indicator | 2a-E9-01.11712 | |
| ECE | Reflector | 1a-E9-02.11712 | |
| ECE | Licence | L-E9-00.11712 |
