Overview

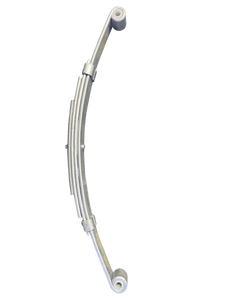

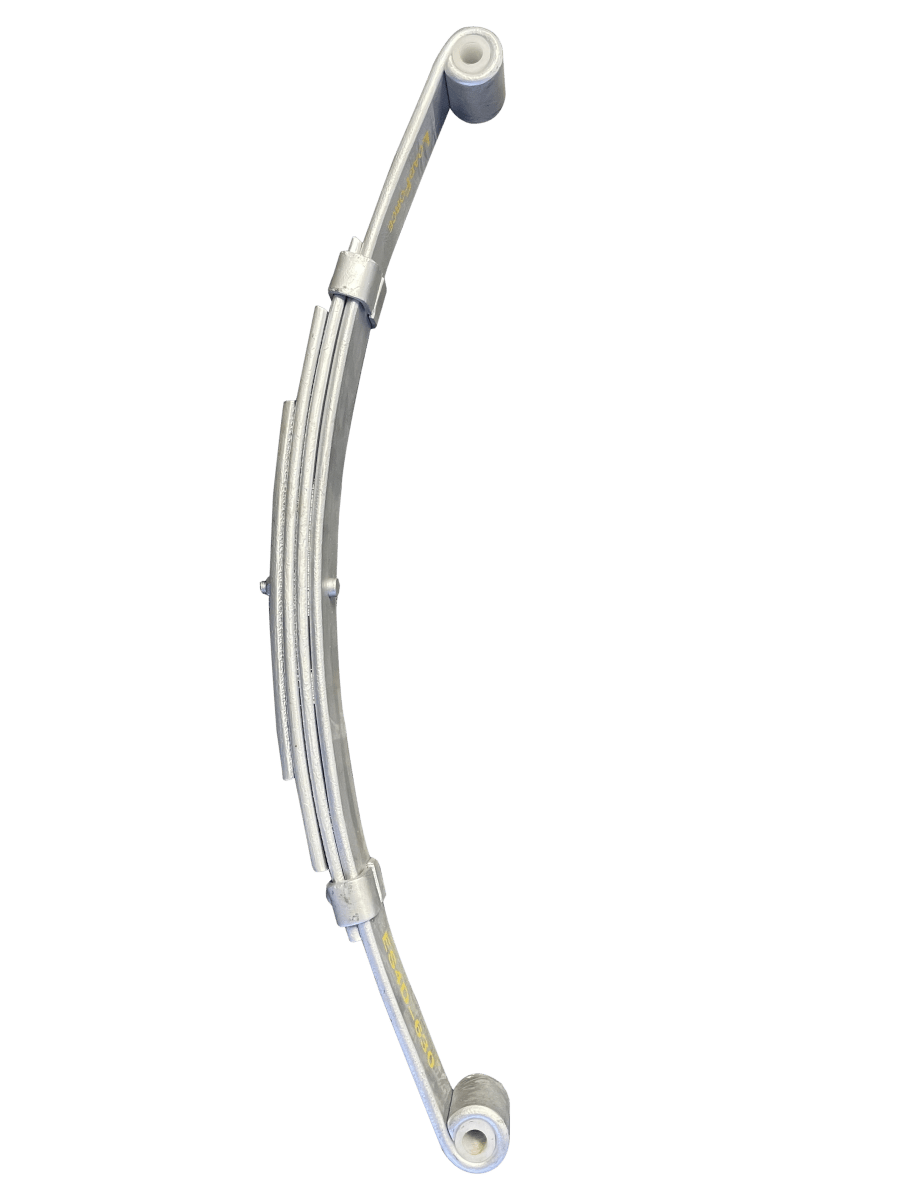

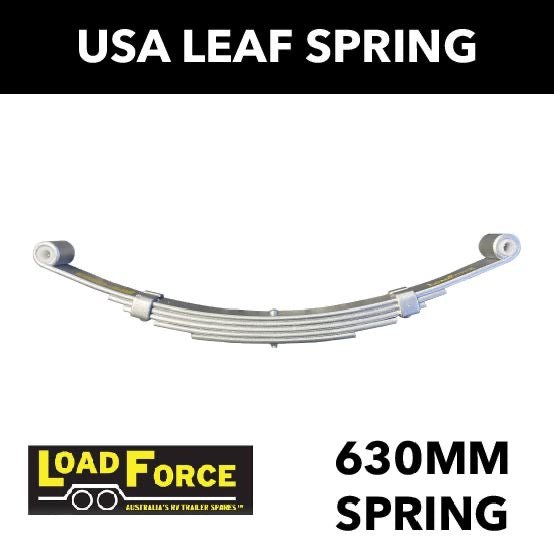

Built for heavy-duty trailer suspension, the DACROMET 630 mm 5‑leaf double-eye spring (ES5D‑630) offers up to 1,500 kg per pair load rating thanks to its tough Dacromet coating. Designed to fit USA-spec trailers that use 9/16″ bush shackle pins—perfect for coastal, marine, and outdoor use.
🌟 Key Features
-
Marine-grade Dacromet corrosion finish—resists rust better than traditional galvanizing
-
Precision dimensions: 630 mm eye-to-eye, 45 mm leaf width, 8 mm leaf thickness, with ~90 mm free camber
-
Heavy-duty rating: 750 kg per spring (1,500 kg per pair)
-
Includes nylon bushings to suit 9/16″ shackle bolts for plug-and-play installation
📊 Specifications
Specification | Value |
---|---|
Part Number | ES5D‑630 |
Length (Eye‑to‑Eye) | 630 mm |
Leaf Design | 5 leaves, 8 mm thick |
Width | 45 mm |
Free Camber | ~90 mm |
Load Rating | 750 kg per spring (1,500 kg pair) |
Eye Diameter | Nylon bushes for 9/16″ eyes |
Finish | DACROMET corrosion-resistant coating |
🚚 Compatibility & Use
Offers a direct replacement for American-style trailer frames using 9/16″ shackle pins. Ideal for marine trailers, utility floats, and tandem setups—high-strength suspension with long-term corrosion protection. Available individually—order two for tandem axle configurations.
🛠 Warranty & Shipping
-
Comes with a 12‑month manufacturer warranty
-
Fast Australia-wide dispatch, typically next business day from Queensland
-
Real-time shipping costs automatically calculated at checkout based on delivery location
Shipping is calculated at checkout based on your location.
