Overview

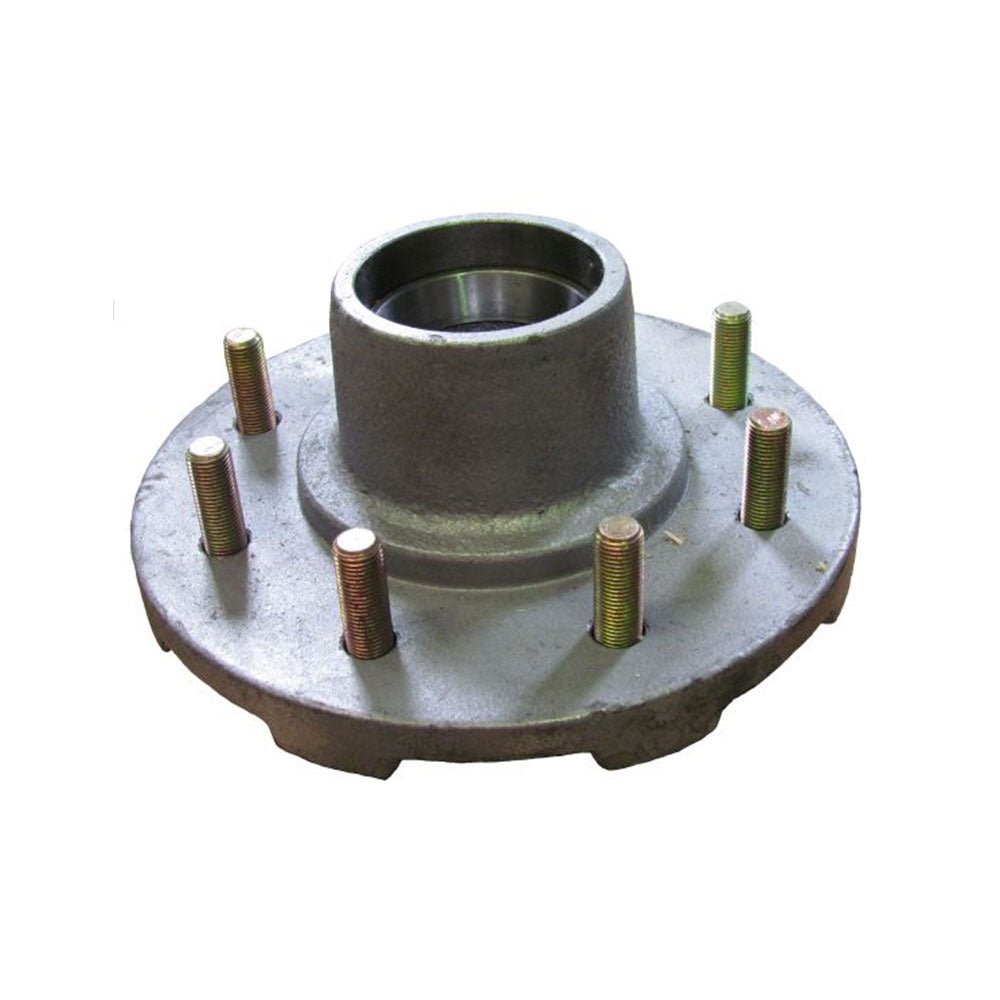

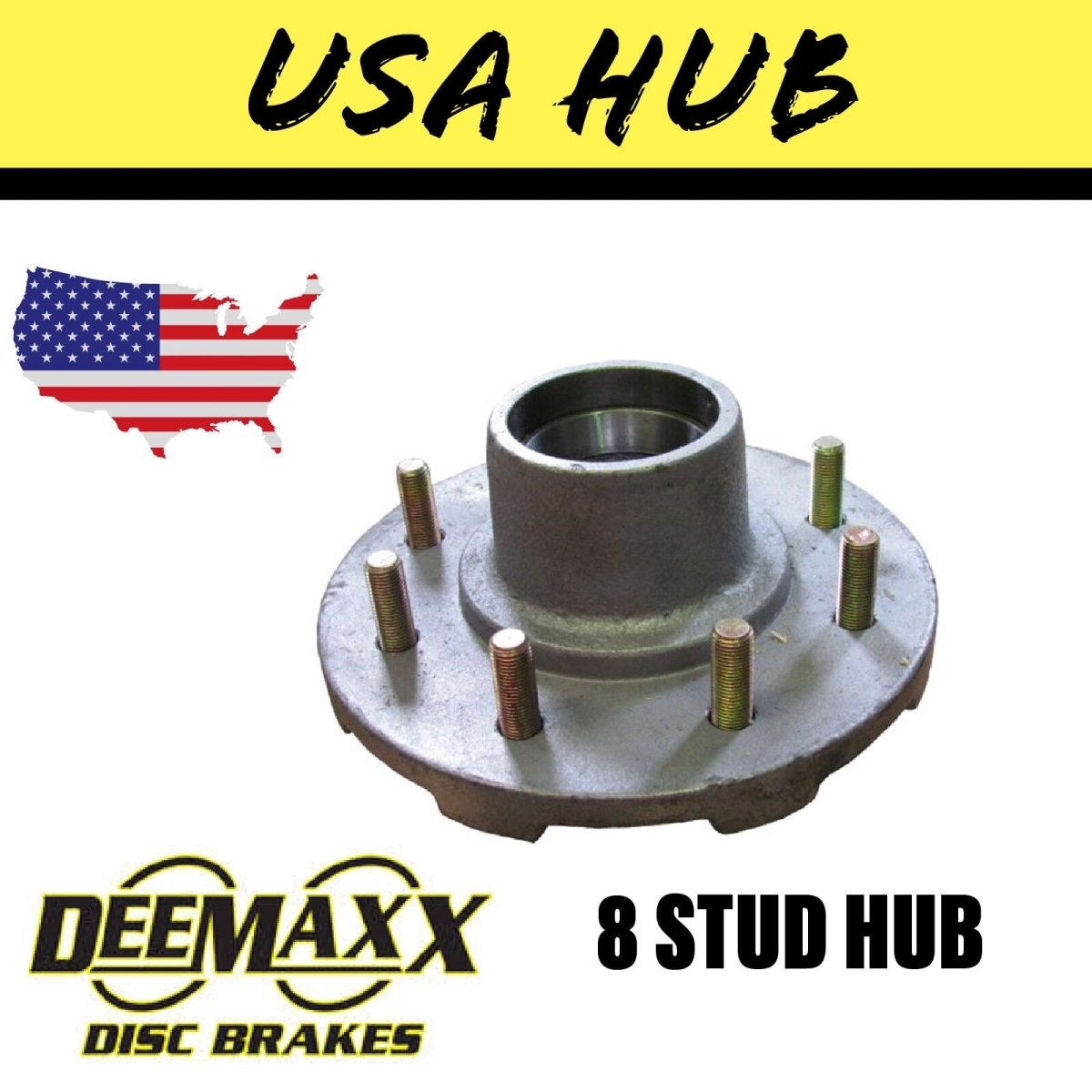

This DeeMaxx 8‑Stud Hub (P/N: HUB‑865‑GALV) is a direct replacement hub unit designed for Dexter 5,200–7,000 lb axles. It accepts Dexter bearings 25580 (inner) and 14125A (outer) and features an 8 × 6.5″ bolt circle with extra-long studs to suit ‘top‑hat’ brake drums or slip‑on rotors ([turn0search0]).
Finished in DACROMET galvanised coating, it offers excellent corrosion protection for marine or coastal applications. Bearings and seals are not included. This hub is a high-strength upgrade for heavy-duty trailer use.
Technical Specifications
| Field | Specification |
|---|---|
| Part Number | HUB‑865‑GALV |
| Capacity | Suitable for 5,200–7,000 lb axles |
| Bolt Pattern | 8 on 6.5″ (165.1 mm) |
| Stud Size | Extra-long ½″ studs, press-fit style |
| Inner Bearing | 25580 |
| Outer Bearing | 14125A |
| Seal | Accepts marine seal 82131 |
| Finish | DACROMET galvanised corrosion-resistant |
| Bearings & Seal | Not included |
Applications & Benefits
-
Direct fit for Dexter 6K–7K axles with 12″ × 2″ drum brakes or slip-on rotors
-
Anti-corrosion DACROMET finish ideal for saltwater or humid environments
-
Extra-long studs accommodate rotors over hub and drum setups
-
Compatible with OEM hubs including Dexter, Kodiak, Lippert, or Al‑Ko
-
Strong performance for boat trailers, caravans, and heavy towing builds ([turn0search15]; [turn0search4])
Why Choose This Hub?
Unlike generic hubs, this DeeMaxx hub is built specifically to suit high-duty Dexter-style axle configurations. Its galvanized finish resists rust, and long studs work with modern brake rotors—making it an ideal rebuild or upgrade solution. Bearings and seals can be sourced separately for a tailored unit.
🛠 Installation Notes
-
Ensure spindle is compatible with bearing sizes 25580 / 14125A.
-
Press-fit hub carefully — do not damage studs.
-
Use matching grease seal (82131) and bearing races.
-
Torque wheel nuts to spec and re-grease regularly for marine applications.
Shipping is calculated at checkout based on your location.
