Overview

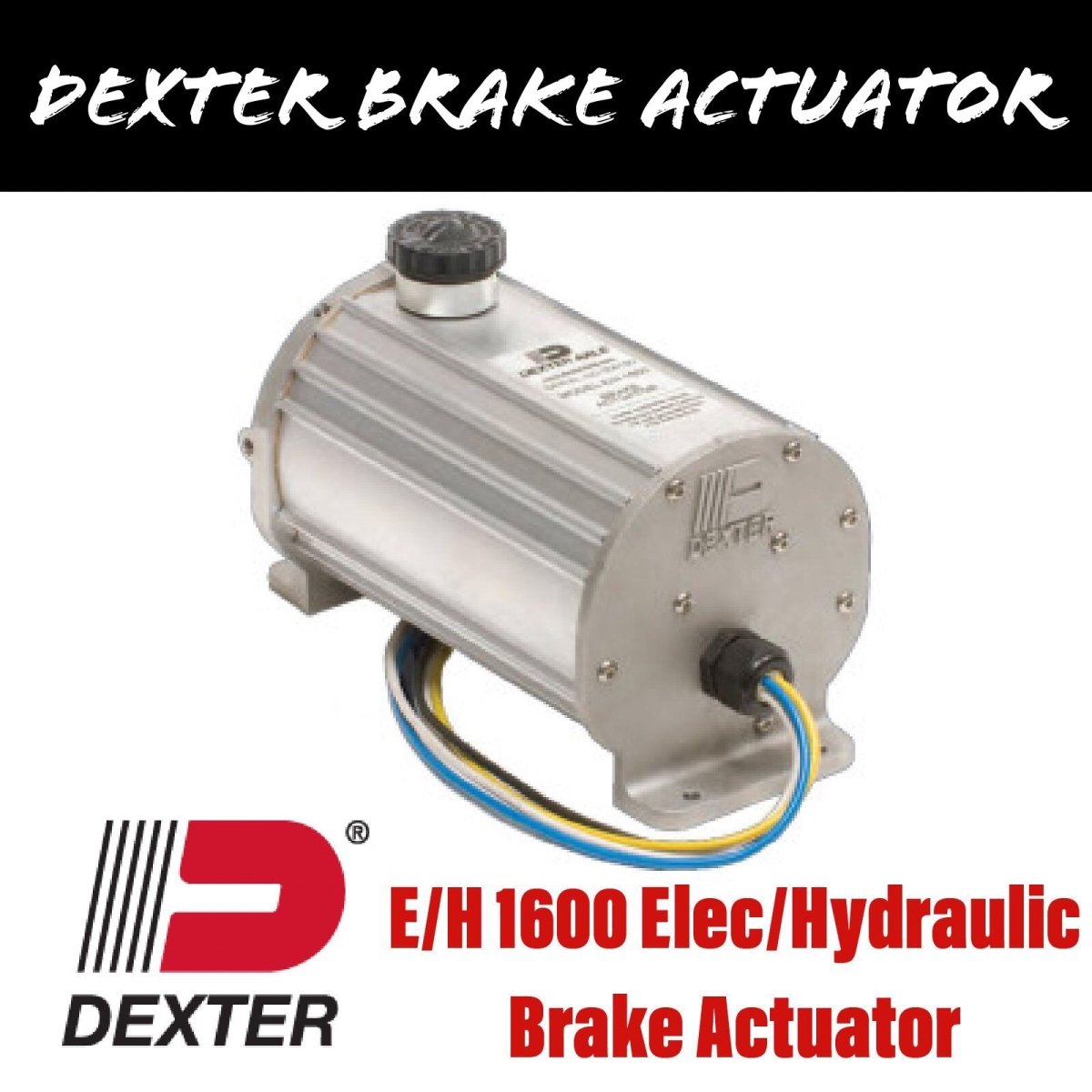

The Dexter E/H 1600 is a precision electric-over-hydraulic brake actuator suited for disc brake trailers. Provides smooth, proportional braking directly linked to in-cab controller output—ideal for heavy-duty and marine applications.
Key Features
-
Up to 1,600 psi hydraulic pressure for reliable braking
-
Aluminium housing with stainless fasteners for corrosion resistance
-
Requires 4-wire trailer hookup and minimum 9 Ah breakaway battery
-
Compatible with DOT 3 & DOT 4 brake fluid
-
Mounting footprint: 270 × 140 × 178 mm; bolt centres: 250 × 63.5 mm
Installation & Usage
-
Electrical hookup: black (power), blue (controller), white (ground), yellow (breakaway)
-
Use with an inertial-type brake controller (e.g. Dexter Predator DX2) for best performance
-
Bleed system per manufacturer guide to ensure proper pressure and fluid clarity
Warranty & Compliance
-
Backed by Dexter’s limited 2-year warranty
-
Suitable for trailers requiring electric/hydraulic actuation and breakaway compliance
Shipping is calculated at checkout based on your location.
- Dexter E/H 1600 electric‑hydraulic brake actuator (for disc brake systems)
- Delivers up to 1,600 psi — ideal for heavy-duty hydraulic brake applications
- Heavy‑duty aluminium housing with stainless steel internal components
- Includes 40 cu in (0.7 L) DOT 3 or DOT 4 brake fluid reservoir
- Requires 4‑wire connector, 12 V DC power, and a minimum 9 Ah breakaway battery
- Compatible with inertial controllers like Predator DX2 (timer controllers not recommended)
- Backed by Dexter's 2‑year limited warranty
- We recommend bleeding the brake system as per manual for best response & safety
