Product Description

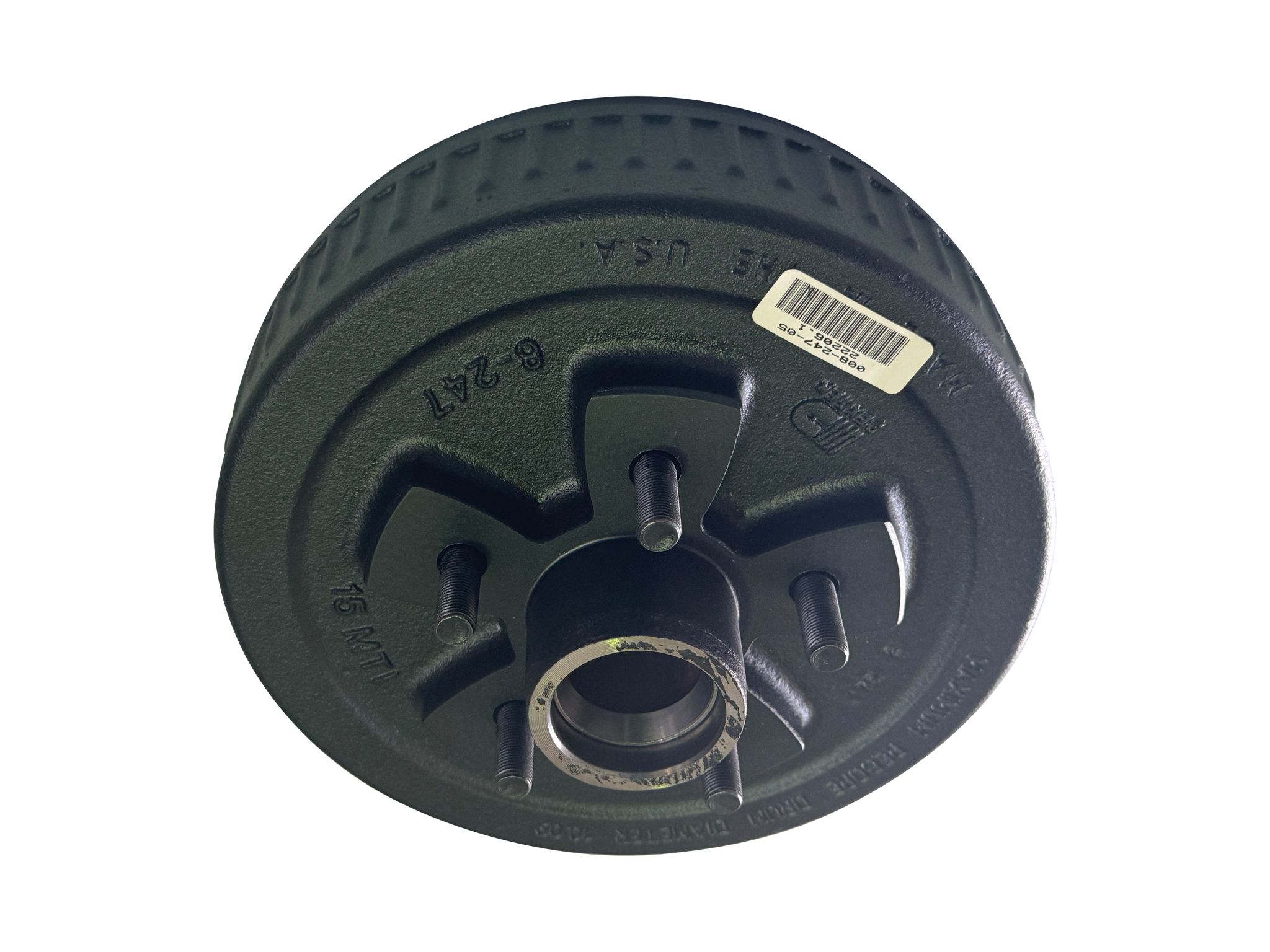

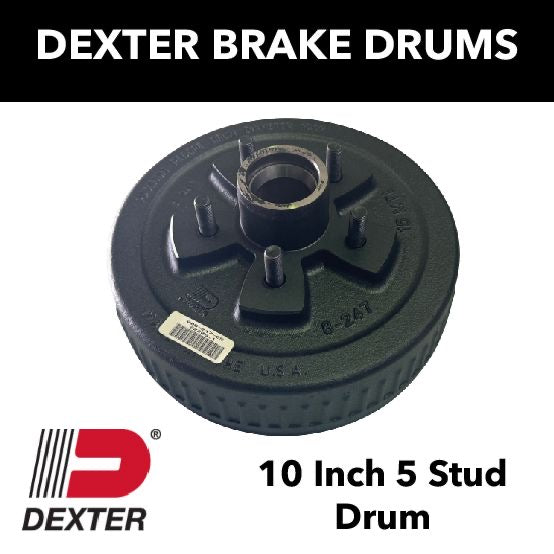

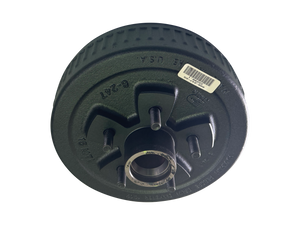

The Dexter USA 10" Hub Drum (P/N 426250) is a genuine Dexter hub drum manufactured in the USA, designed for 3,500 lb (approximately 1,588kg) trailer axles fitted with 10" × 2¼" electric or hydraulic drum brakes and the popular Ford 5 × 114.3mm wheel pattern.
Unlike a standard hub drum, this Dexter assembly is supplied pre-studded and pre-cupped, with the wheel studs and bearing cups already installed. This saves installation time, eliminates the need to press in bearing cups and wheel studs, and ensures genuine Dexter fit and accuracy.
The hub drum is machined to suit the genuine Dexter bearing combination using L68149 inner bearings with L68111 cups and L44649 outer bearings with L44610 cups.
Please note: Bearings, grease seal, grease cap, wheel nuts and installation hardware are sold separately.
Features & Benefits
- Genuine Dexter product
- Manufactured in the USA
- Part Number 426250
- Designed for 3,500 lb (1,588kg) trailer axles
- 10" × 2¼" Hub Drum
- Suits both electric and hydraulic brake systems
- Ford 5 × 114.3mm wheel pattern
- Five wheel studs pre-installed
- Bearing cups (races) pre-installed
- Precision-machined braking surface
- Genuine Dexter quality and reliability
Specifications
| Specification | Details |
|---|---|
| Brand | Dexter |
| Part Number | 426250 |
| Country of Manufacture | USA |
| Brake Size | 10" × 2¼" |
| Brake Type | Electric or Hydraulic Drum Brake |
| Axle Capacity | 3,500 lb (Approx. 1,588kg) |
| Wheel Stud Pattern | 5 × 114.3mm (Ford) |
| Wheel Studs | Pre-installed |
| Bearing Compatibility | L68149/L68111 Inner & L44649/L44610 Outer |
| Bearing Cups (Races) | Included (Pre-installed) |
| Bearings | Not Included |
| Grease Seal | XK71-303-00 (Not Included) |
| Grease Caps | K71-314-00 or XK71-315-00 (Not Included) |
Why Choose a Studded & Cupped Hub Drum?
This genuine Dexter hub drum is supplied with both the wheel studs and bearing cups (races) already installed.
Benefits include:
- No need to press in wheel studs
- No need to install bearing cups
- Faster installation
- Genuine Dexter factory fit
- Reduced installation time
- Ideal for workshops and DIY installers
Stud Pattern Explained
This hub drum uses the Ford 5 × 114.3mm (5 × 4.5") wheel pattern, commonly fitted to Australian trailers.
Before ordering, always confirm:
- Wheel stud pattern
- Brake size
- Bearing numbers
- Axle capacity
Bearing Compatibility
This genuine Dexter hub drum is machined to suit the following bearing combination:
| Component | Specification |
| Inner Bearing | L68149 |
| Inner Cup | L68111 |
| Outer Bearing | L44649 |
| Outer Cup | L44610 |
| Bearing Cups | Included |
| Bearings | Not Included |
| Recommended Grease Seal | XK71-303-00 |
| Grease Cap Options | K71-314-00 or XK71-315-00 |
For maximum reliability, we recommend fitting new bearings, a new grease seal and a new grease cap when installing the hub drum.
Brake Compatibility
This hub drum is compatible with:
- Dexter 10" Electric Brake Backing Plates
- Dexter 10" Hydraulic Brake Backing Plates
Suitable for both electric and hydraulic drum brake systems.
Suitable Applications
Ideal for:
- Boat trailers
- Box trailers
- Camper trailers
- Utility trailers
- Car trailers
- General-purpose trailers fitted with 3,500 lb Dexter axles
Why Choose Genuine Dexter?
Genuine Dexter hub drums are manufactured in the USA to exact engineering tolerances and are trusted by trailer manufacturers worldwide.
Benefits include:
- Manufactured in the USA
- Genuine Dexter quality
- Factory-installed bearing cups
- Factory-installed wheel studs
- Precision-machined braking surface
- Suitable for electric and hydraulic braking systems
- Long service life
What's Included
- 1 × Genuine Dexter USA 10" Hub Drum
- Bearing Cups (Pre-installed)
- Wheel Studs (Pre-installed)
What's Not Included
- Inner Bearing (L68149)
- Outer Bearing (L44649)
- Grease Seal (XK71-303-00)
- Grease Cap (K71-314-00 or XK71-315-00)
- Wheel Nuts
- Electric or Hydraulic Backing Plate
Will This Fit My Trailer?
Before ordering, confirm the following:
✔ Dexter 3,500 lb axle
✔ 10" × 2¼" drum brake system
✔ Ford 5 × 114.3mm wheel pattern
✔ Inner bearing L68149
✔ Outer bearing L44649
If these specifications match your existing hub drum, this product is suitable for your trailer.
Complete Your Installation
Bearings & Seals
Brake Components
- Dexter 10" Electric Brake Backing Plates RHS
- Dexter 10" Electric Brake Backing Plates LHS
- Dexter Brake Shoe Set
Workshop Items
-
Marine Wheel Bearing Grease
- Split Pin
- Castle Nut
-
1/2" UNF Wheel Nuts
Common Replacement Parts
- Dexter Bearing Kit
- Grease Seal XK71-303-00
- Grease Caps K71-314-00 / XK71-315-00
- Brake Shoes
- Brake Magnets
Installation Tips
- Pack new bearings with quality marine wheel bearing grease.
- Always install a new grease seal.
- Inspect the spindle before installation.
- Adjust the brakes after installation.
- Torque wheel nuts to the manufacturer's specifications.
Frequently Asked Questions
Are the bearing cups already installed?
Yes. This hub drum is supplied with the bearing cups (races) factory-installed.
Are the wheel studs already installed?
Yes. The wheel studs are factory-installed.
Does it include the bearings?
No. Bearings are sold separately.
What bearings does it use?
- Inner Bearing: L68149
- Inner Cup: L68111
- Outer Bearing: L44649
- Outer Cup: L44610
Does it suit electric brakes?
Yes.
Does it also suit hydraulic brakes?
Yes. It suits both electric and hydraulic 10" brake systems.
Where is this hub drum manufactured?
This is a genuine Dexter hub drum manufactured in the USA.
