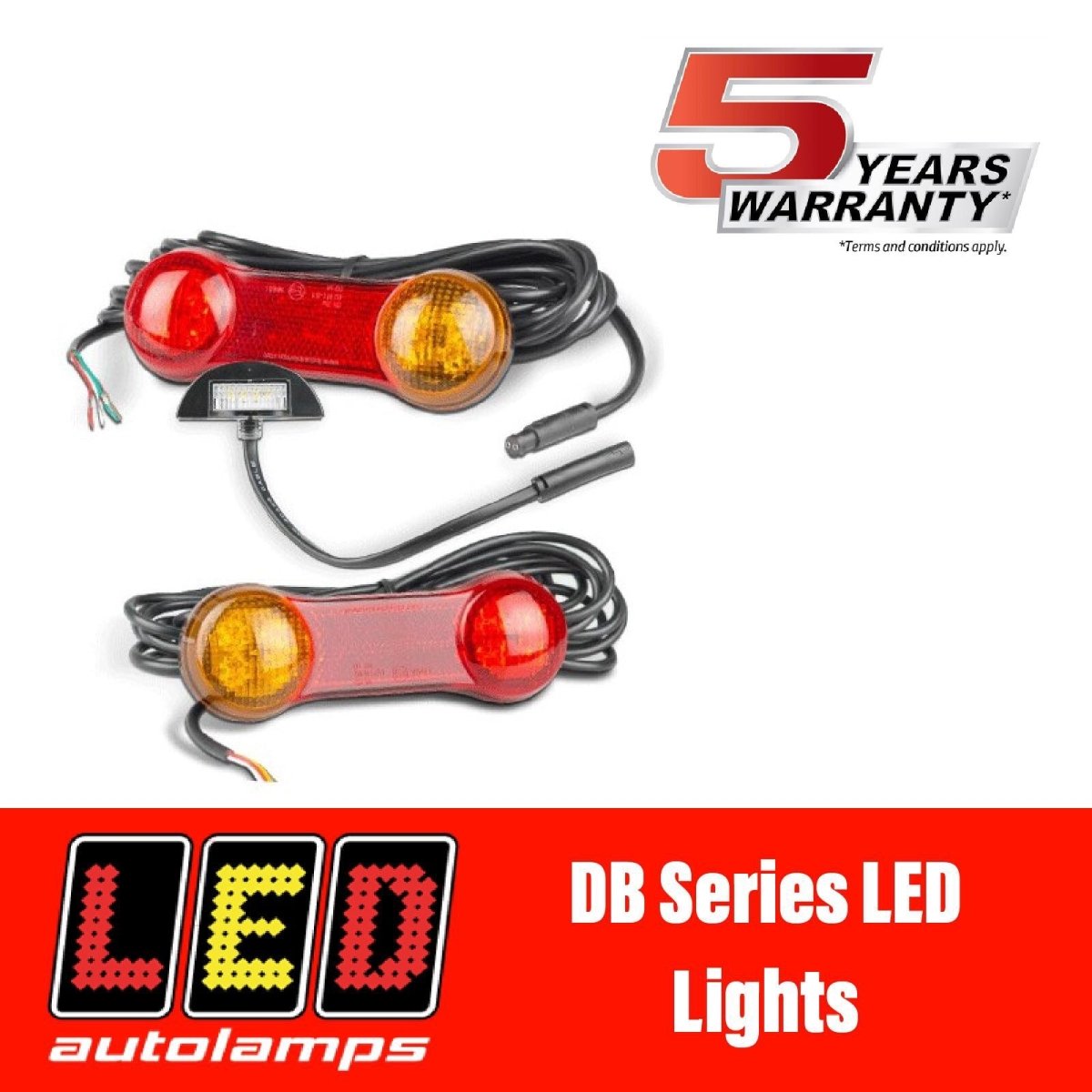

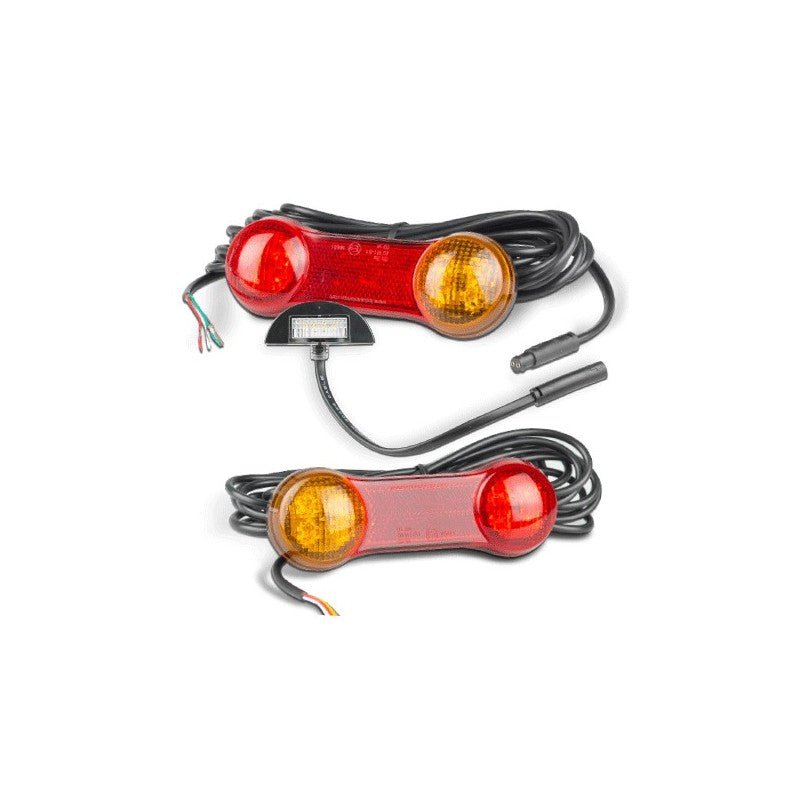

LED AUTOLAMPS DB SERIES LED LIGHT KIT
P/N:DB2LP1/5MB
Features / Specifications
- Our lowest priced rear combination lamp
- Competes with cheap Chinese copies
- 8 x Super Bright LEDs with Enhanced Lens Optics
- ECE approved
- IP67 100% Water proof
- 12V Only
- 2 Year Warranty
- 150mm x 50mm x 23mm
Fitting Instructions
1/ Drill a 13mm hole for the wire outlet plug.
2/ Remove the protective film from the 3M tape.
3/ Push the cable and plug through the hole.
4/ Line up the lamp and press firmly.
5/ The lamp is held securely with high quality 3M tape.
Wire Colour for Trailer Kit
Red - Stop, Brown - Tail, White - Earth,
Yellow - LHS Indicator, Green - RHS Indicator
Please refer to ADR 13/00 for mounting instructions.
| DB2LP1/5MB | 12 Volt, Trailer Kit in Bulk Poly Bag Includes 2 x DB with 5m Cable and 1 x 60BLM with 40 cm cable and plug |
||
| . | |||
| LED Qty | 8 | ||
| Cable | 5 meters cable on each lamp and 40cm Licence Plate Lamp |
||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.065A | 0.004A | 0.058A |
| Approvals | Function | Approval No. | |
| ECE | Stop/Tail | R1-S1-E9-02.16451 | |
| ECE | Indicator | 2a-E9-01.16451 | |
| ECE | Reflector | 1A-E9-02.16451 |
