Overview

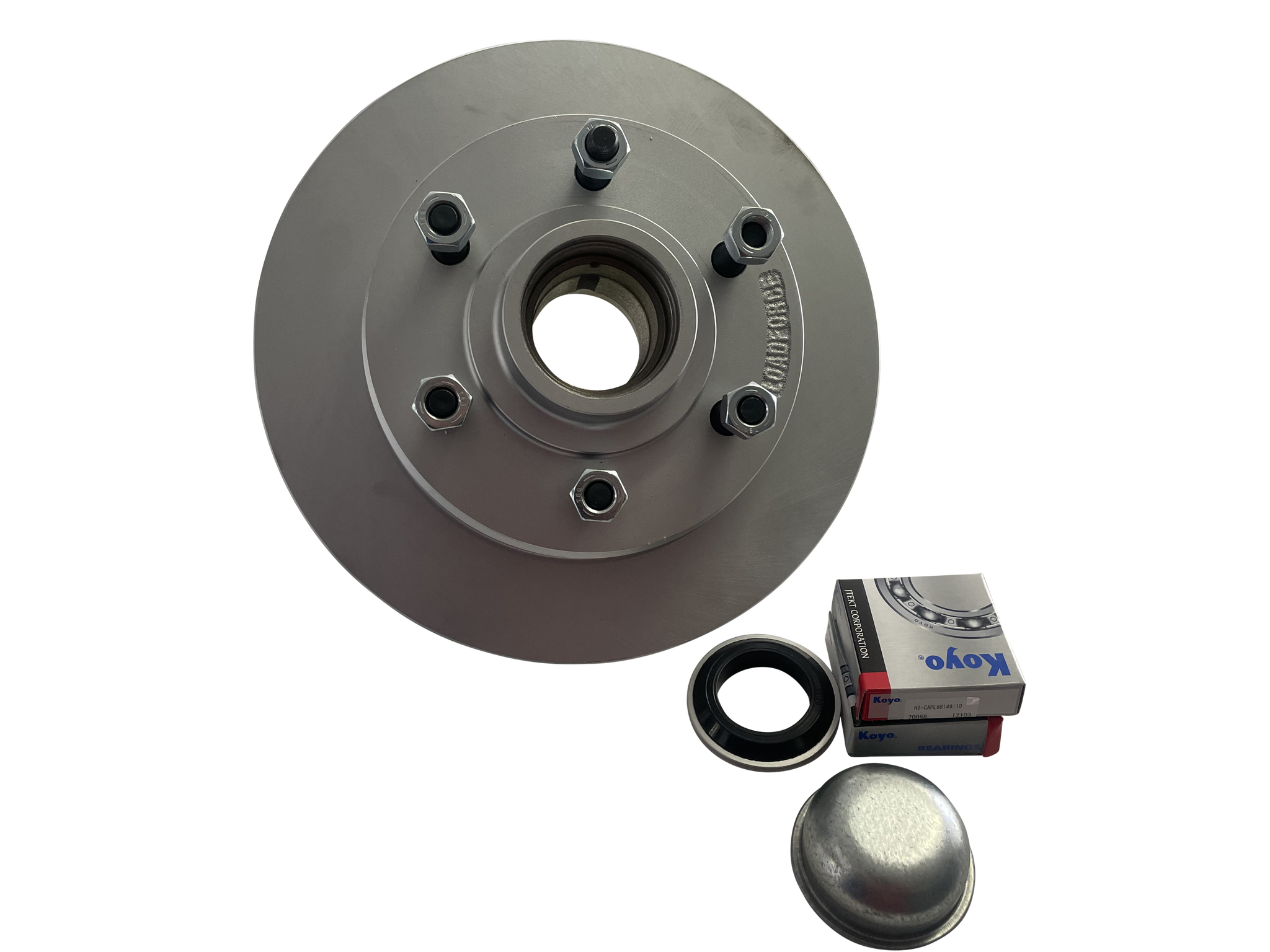

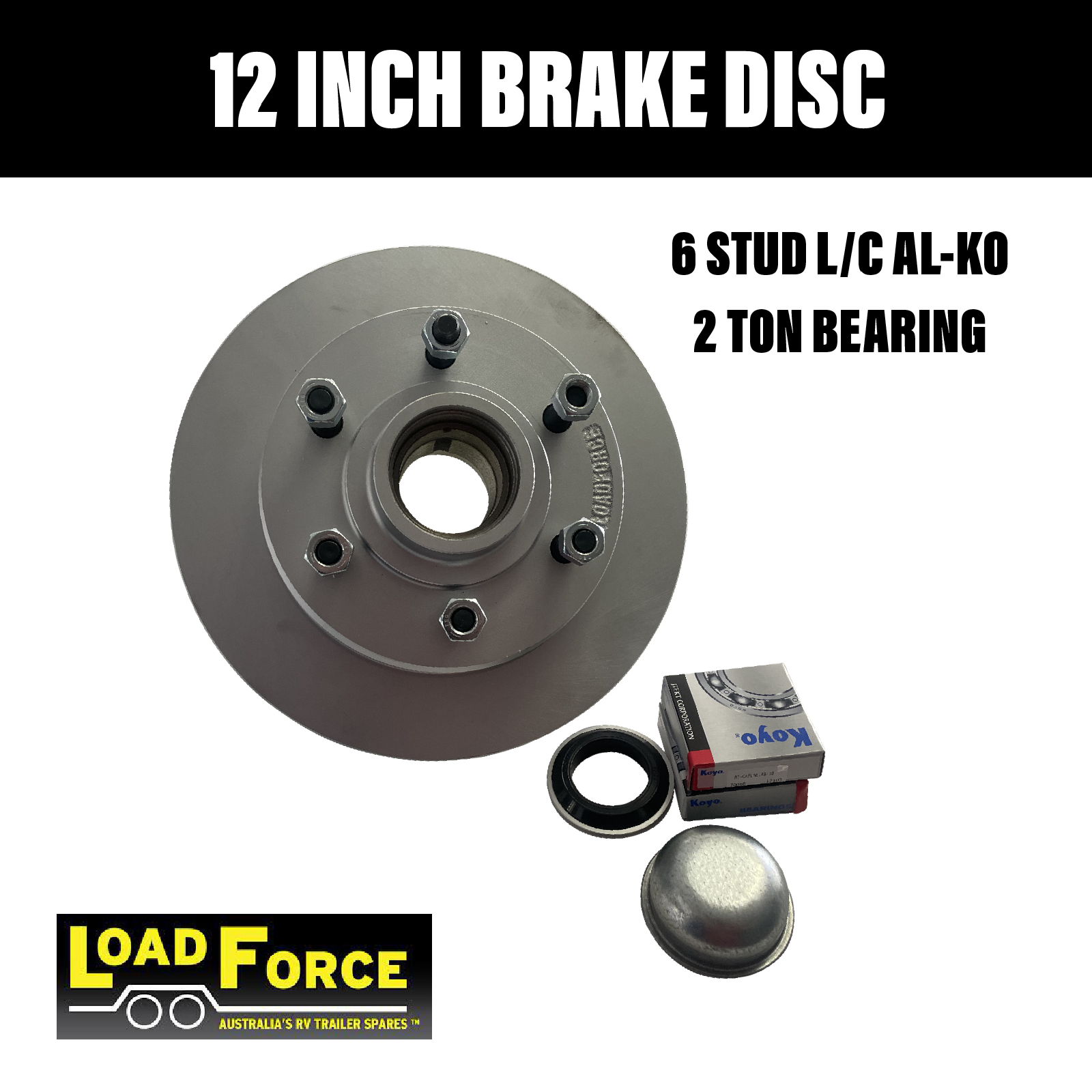

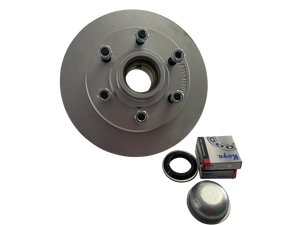

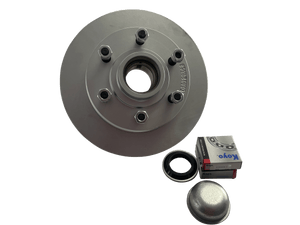

This LoadForce 12-inch disc hub (P/N: DH58LTXG) comes equipped with high-grade TX series Japanese bearings (inner 30210/10, outer 15123/245) and is Dacromet-coated for superior corrosion resistance. Designed to bolt directly to LandCruiser-style 6-stud (139.7 mm PCD) trailer axles, this full kit is ideal for heavy-duty coastal trailer use.
✅ Key Features
-
Disc size: 305 mm (12″) with 16 mm thickness (approx. 5/8″) for robust braking capacity
-
Stud pattern: 6‑stud, 139.7 mm PCD (½″ UNF studs), stud‑center approx. 70 mm
-
Bearings included: TX series: Inner 30210/10 & Outer 15123/245 — high-load Japanese bearings
-
Full kit: Includes hub, bearings, dust cap, marine-grade seal, studs, nuts, and washers
-
Coating: Premium Dacromet marine finish to resist rust in saltwater exposure
📊 Specifications
| Feature | Details |
|---|---|
| Part Number | DH58LTXG |
| Rotor Diameter | 305 mm (12″) |
| Thickness | 16 mm (5/8″) |
| Bolt Pattern | 6‑Stud, 139.7 mm PCD |
| Stud Diameter | ½″ UNF |
| Bearings | 30210/10 (inner), 15123/245 (outer) |
| Included | Seal, dust cap, studs & nuts |
| Finish | Dacromet coating |
⚙️ Compatibility & Use
This disc hub suits brake kits with 12″ rotors on 6-stud LandCruiser-pattern axles, including Kodiak, UFP, Deemaxx, and similar mechanical or hydraulic setups. Easy bolt-on replacement that includes premium bearings and Australian-made hub seal for long-lasting performance.
🚚 Warranty & Shipping
-
Backed by a 12‑month manufacturer warranty
-
Ships next business day across Australia from QLD
-
Shipping cost is automatically calculated at checkout
Shipping is calculated at checkout based on your location.
