Overview

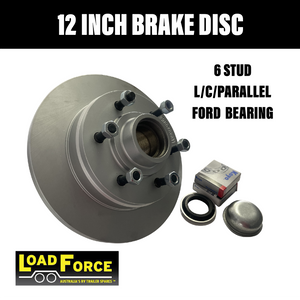

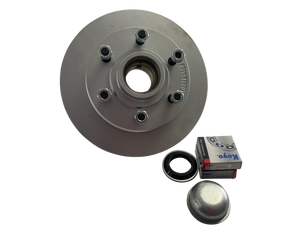

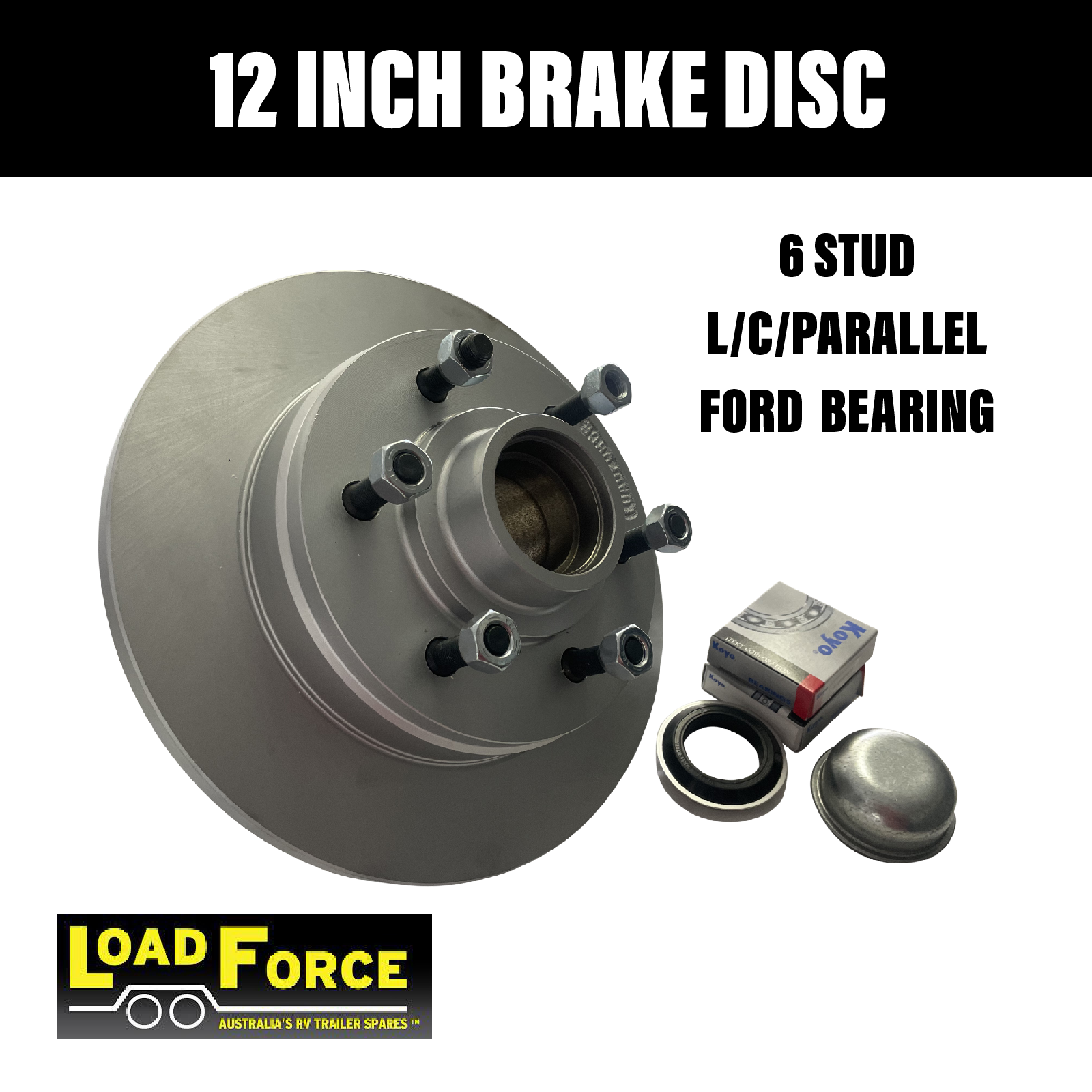

Built for durability in harsh maritime conditions, this LoadForce 12-inch Dacromet-coated disc hub (P/N: DH58LPG) fits 6-stud LandCruiser/Ford patterns (139.7 mm PCD) and comes complete with parallel Japanese bearings (inner & outer LM68149/10), AUS-made hub seal, dust cap, studs, and nuts—ready for quick bolt-on installation.
✅ Key Features
-
12″ (305 mm) disc hub with 5/8″ thickness—ventilated for improved heat dissipation
-
6‑stud, 139.7 mm (5.5″) PCD stud pattern, using ½″ UNF studs and ~70 mm spacing
-
Supplied with matching Japanese parallel bearings LM68149/10 (inner & outer) for reliability and high load capacity
-
Marine-grade Dacromet finish to resist corrosion in coastal applications
-
Complete kit includes hub seal, dust cap, studs, nuts; boxed ready to install
📊 Specifications
| Specification | Detail |
|---|---|
| Part Number | DH58LPG |
| Disc Size | 12″ (305 mm) × 5/8″ thickness |
| Bolt Pattern | 6‑stud LandCruiser / Ford (139.7 mm PCD) |
| Stud Diameter / Spacing | ½″ UNF; ~70 mm spacing |
| Bearings Included | LM68149/10 inner & outer (parallel) |
| Kit Includes | Bearings, marine seal, dust cap, studs & nuts |
| Finish | Dacromet corrosion-resistant coating |
⚙️ Compatibility & Use
Ideal for trailer systems using mechanical or hydraulic calipers, this hub fits standard 6‑stud setups. The parallel bearing configuration supports braking applications requiring high-capacity load bearings. Install according to torque specifications, use marine grease, and torque evenly for optimum performance.
🚚 Warranty & Shipping
-
12-month manufacturer warranty for peace of mind
-
Fast Australia-wide dispatch, usually next business day from QLD
-
Shipping calculated at checkout based on your region
