Overview

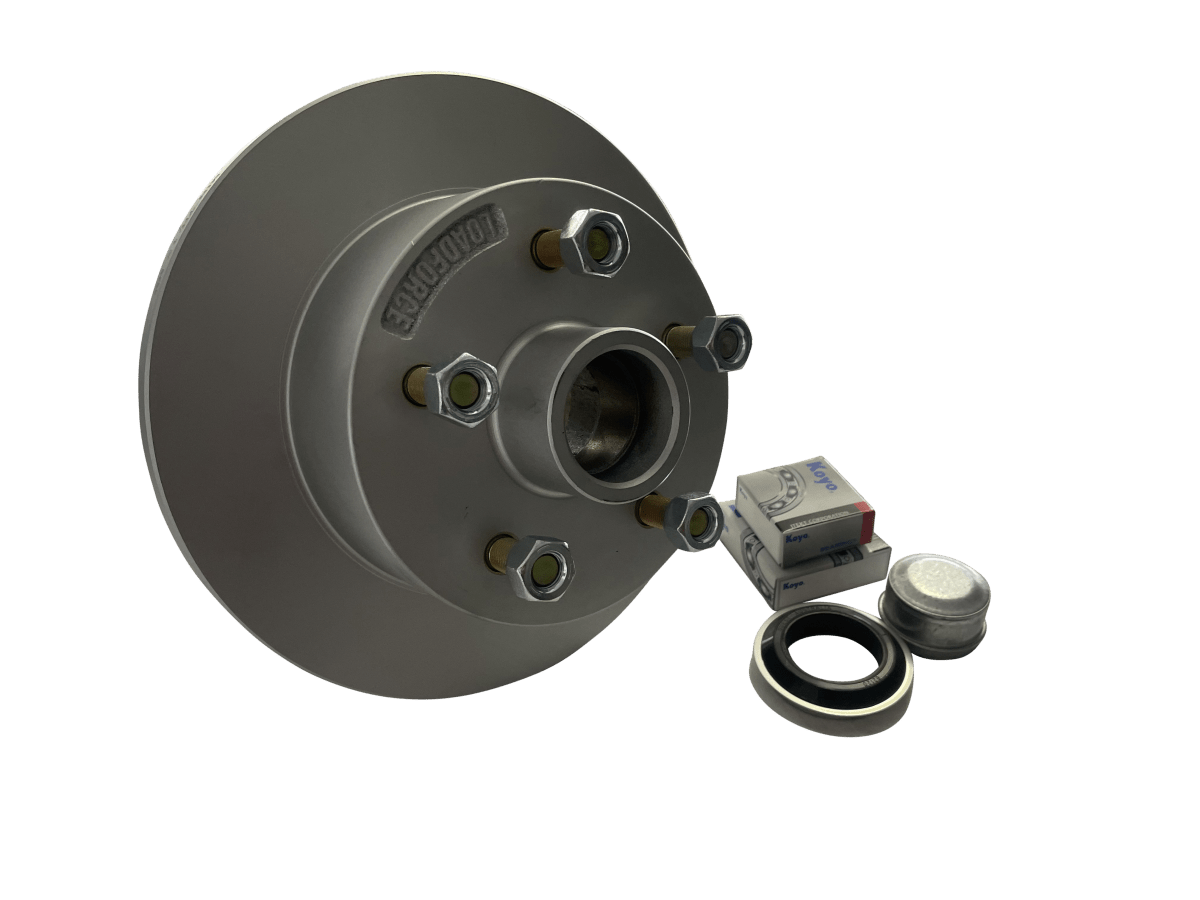

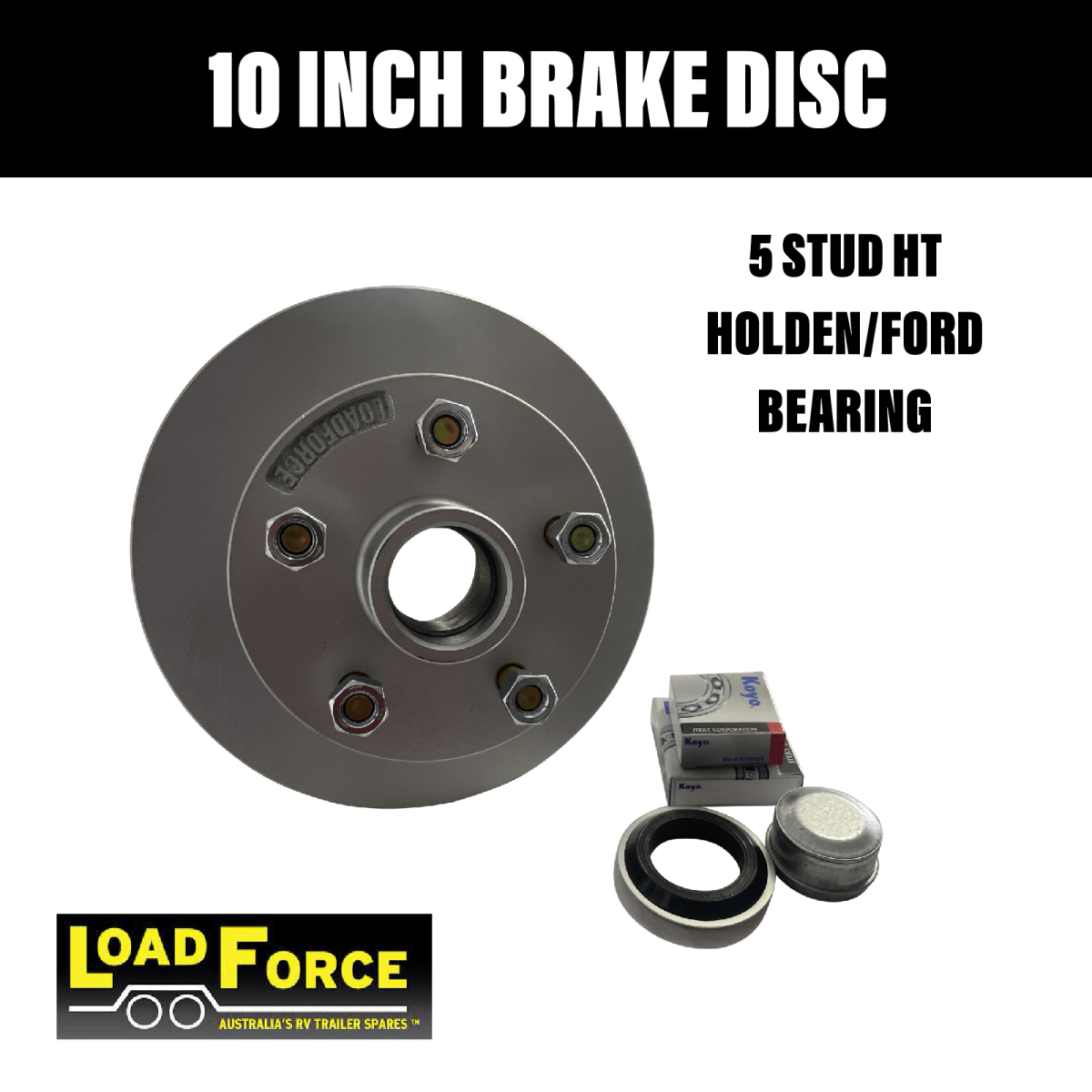

The LoadForce DH58HTFG‑10 disc hub blends Holden-pattern axle fitment (63 mm PCD, 7/16″ UNF studs) with Ford-compatible SL bearings—delivering a premium, hybrid solution for trailers using smaller Holden-style bolt patterns. Made from high-quality *Dacromet-coated disc, includes Japanese-built SL bearings (inner LM68149/10, outer LM12749/10), marine seal, dust cap, studs & nuts for easy installation.
✔️ Key Features
-
Holden stud pattern: 63 mm PCD, 7/16″ UNF studs
-
Ford bearings (SL type): compatible with numerous axles using L68149/10 (inner) and LM12749/10 (outer) bearings.
-
Fully Dacromet-coated hub for enhanced marine-grade corrosion resistance.
-
Supplied ready-to-install with: hub disc, SL bearings, studs, nuts, marine seal & dust cap.
📊 Specifications
| Specification | Details |
|---|---|
| Part Number | DH58HTFG‑10 |
| Stud Pattern / PCD | Holden pattern (5-stud, 63 mm PCD) |
| Stud Size | 7/16″ UNF |
| Bearing Type | Ford-spec SL bearings (L68149/10 & LM12749/10) |
| Axle Fitment | Ford |
| Coating | Marine-grade Dacromet plating |
| Included Kit Components | Bearings, studs & nuts, marine seal, dust cap |
| Warranty | 12 months |
⚙️ Compatibility & Use
This hybrid hub is optimized for trailers with Holden-pattern axle studs, but where Ford-compatible SL bearings are preferred. Ideal in coastal or damp conditions due to superior corrosion resistance. Always torque evenly by hand to preserve integrity and service life.
🚚 Warranty & Shipping
-
Comes with a 12-month manufacturer warranty
-
Next-business-day dispatch from QLD, Australia
-
Shipping costs calculated at checkout based on location
Shipping is calculated at checkout based on your location.
