Overview

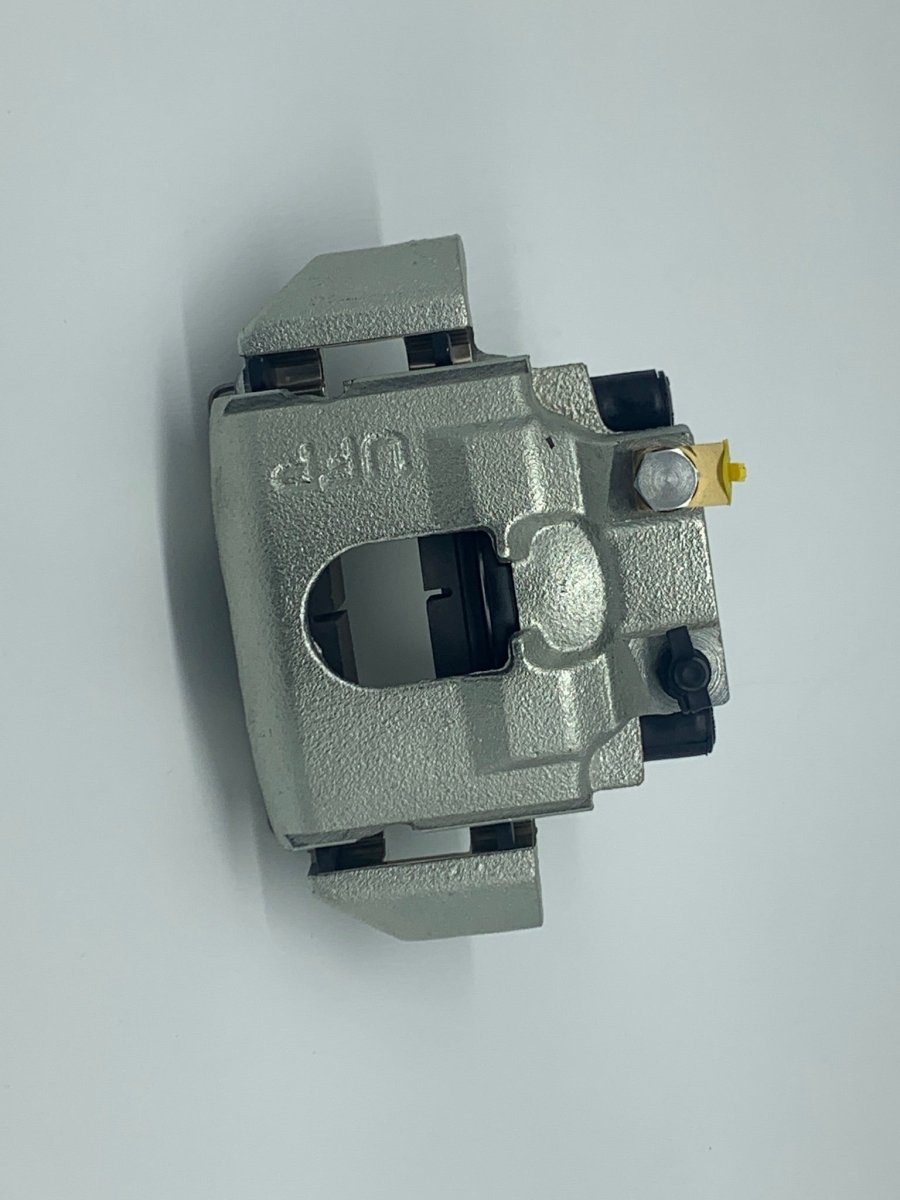

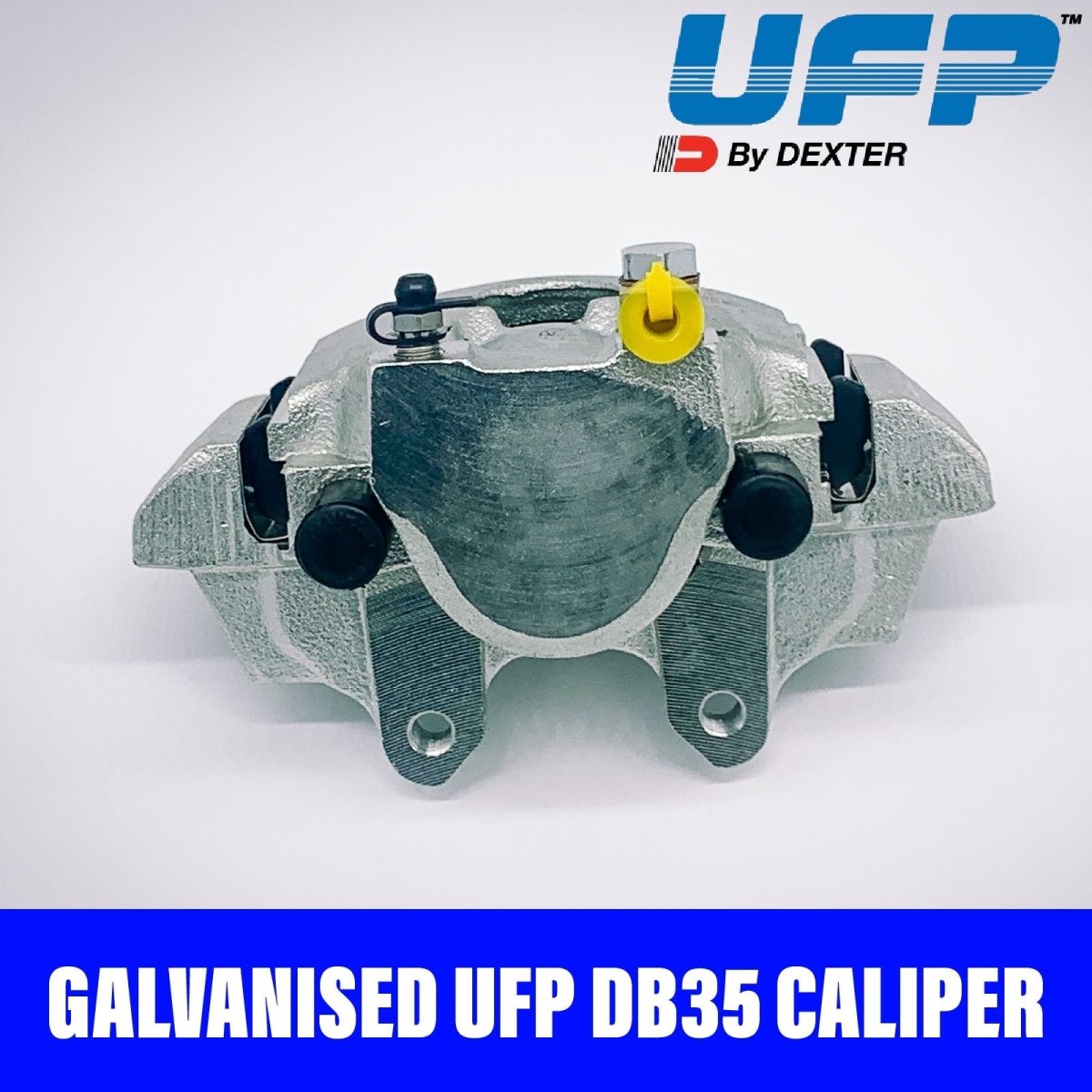

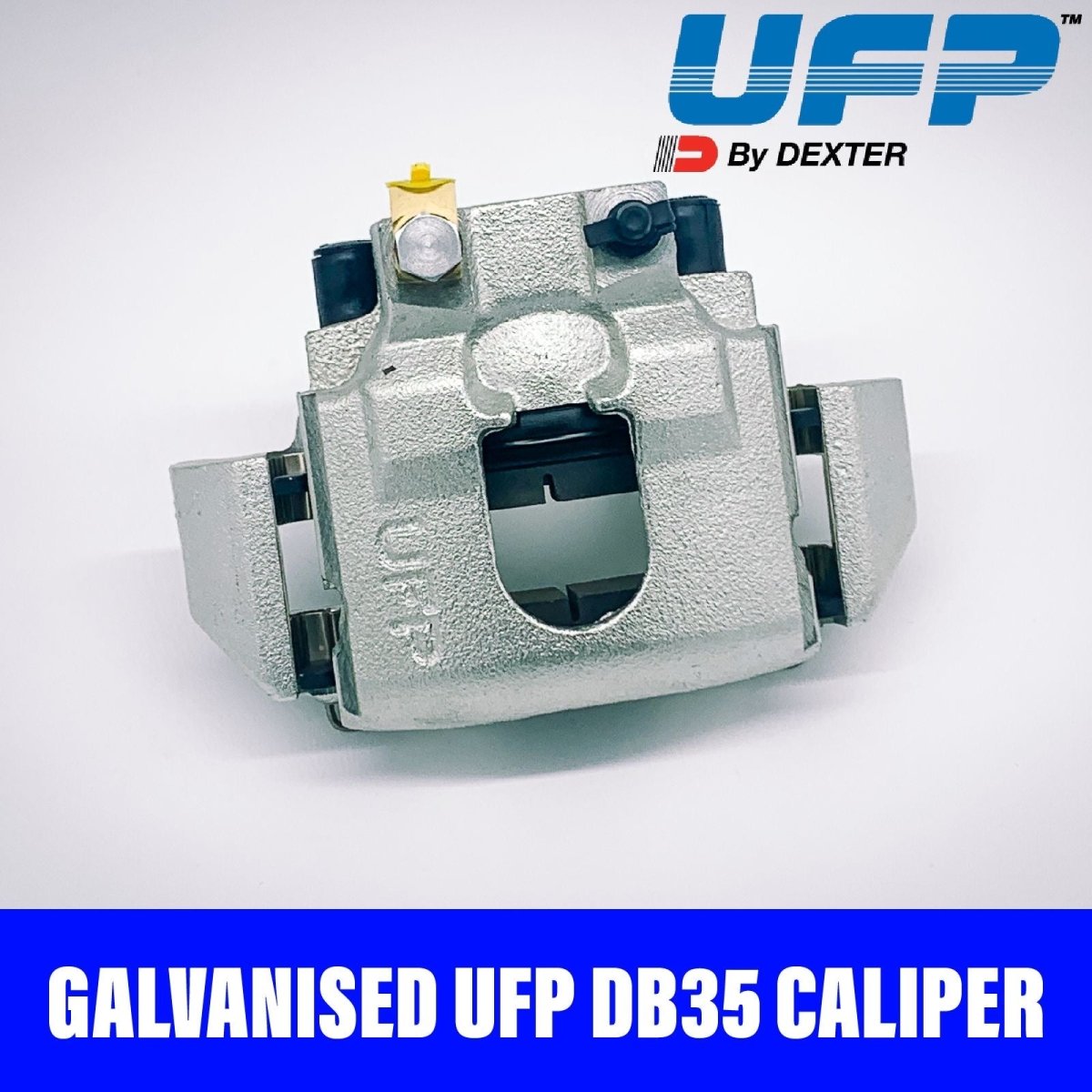

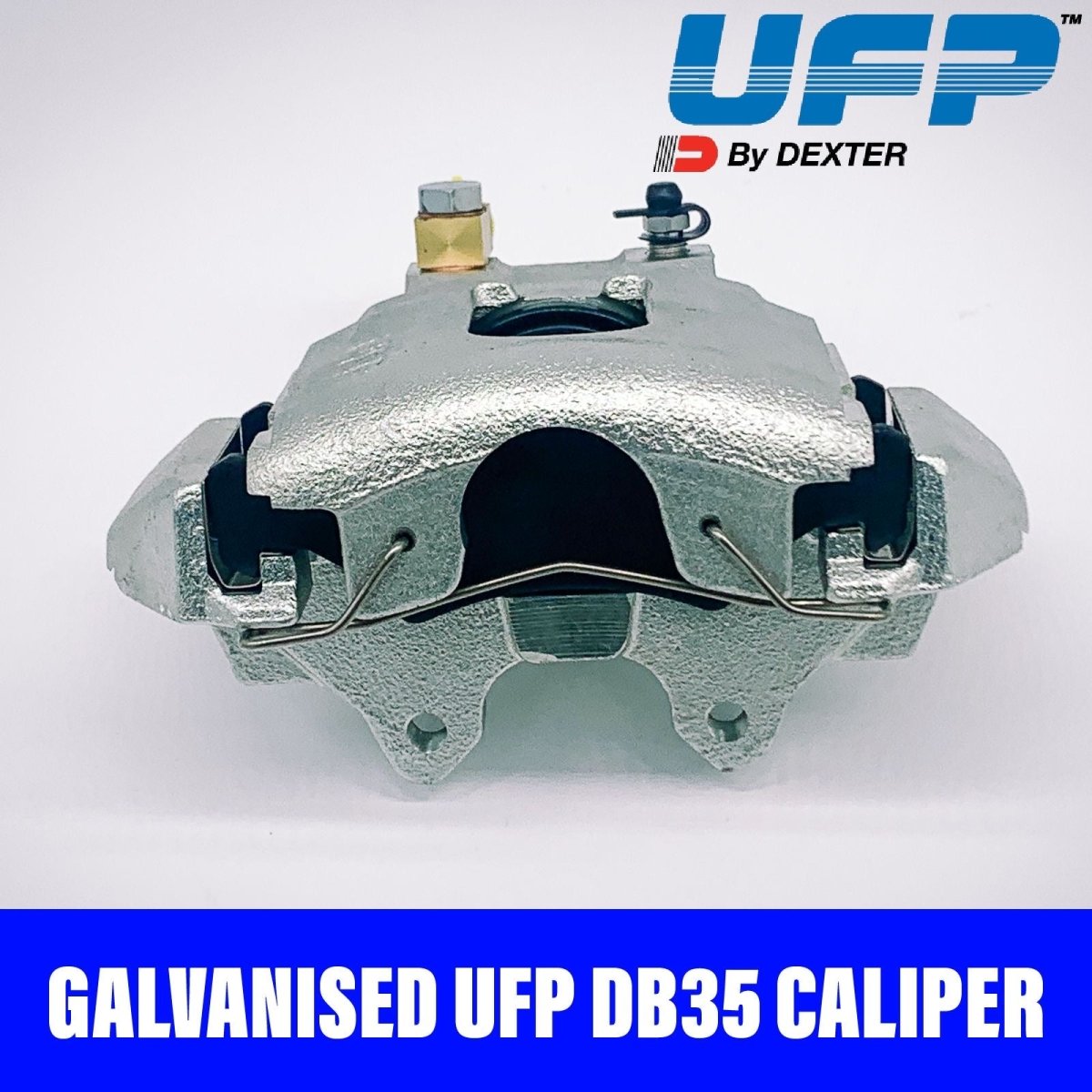

The Dexter DB‑35 disc brake caliper now features a Dacromet‑coated cast-iron body and stainless-steel piston, offering superior corrosion resistance for marine, boat, and coastal trailer use. Includes pre‑loaded organic pads and fits 19 mm (¾") to 24 mm disc rotors. 💧 Ideal for challenging environments where salt and moisture are present.
🔧 Key Features
-
Genuine Dexter DB‑35 model in Dacromet finish with stainless piston
-
Pre-installed organic brake pads, anti-rattle clips & bolts included
-
Rated up to 3,150 kg per axle depending on rotor size and build
-
Works with ventilated disc rotors 19–24 mm thick
-
Compatible with DOT 3 or DOT 4 brake fluid (DOT 4 recommended)
📋 Specifications
Specification | Details |
---|---|
Part Numbers | X089-135-23 |
Finish & Body | Dacromet-coated cast iron |
Piston Material | Stainless steel |
Rotor Thickness Compatibility | 19 mm to 24 mm (¾″–15/16″) |
Included Components | Pads, bolts, anti-rattle clips |
Max Axle Capacity | Up to ~3,150 kg (dependent on other components) |
Fluid Compatibility | DOT 3 or DOT 4 (recommended) |
Mount Orientation | Non-handed body; side set by bleed port location |
📦 Included in Package
-
1 × Dexter DB‑35 Caliper
-
1 × Set of organic brake pads (pre-installed)
-
1 × Anti-rattle clip set
Shipping is calculated at checkout based on your location.
- Dexter Dacromet DB‑35 disc brake caliper
- Features zinc body with corrosion-resistant Dacromet finish and stainless steel piston
- Universal mounting design — no left/right distinction
- Includes organic pads, anti-rattle clips, and mounting hardware (Part #33090)
- Fits ventilated 9.75″, 10″, or 12″ disc rotors (19–24 mm thickness)
- Flex-controlled design minimizes pad wear and vibration
- Large, accessible bleeder screw for easy servicing
- Integrated handbrake lever adds safety when trailer is parked or unattended
- Backed by Dexter quality — 2‑year limited warranty
- Ideal upgrade for trailers exposed to harsh or marine environments
