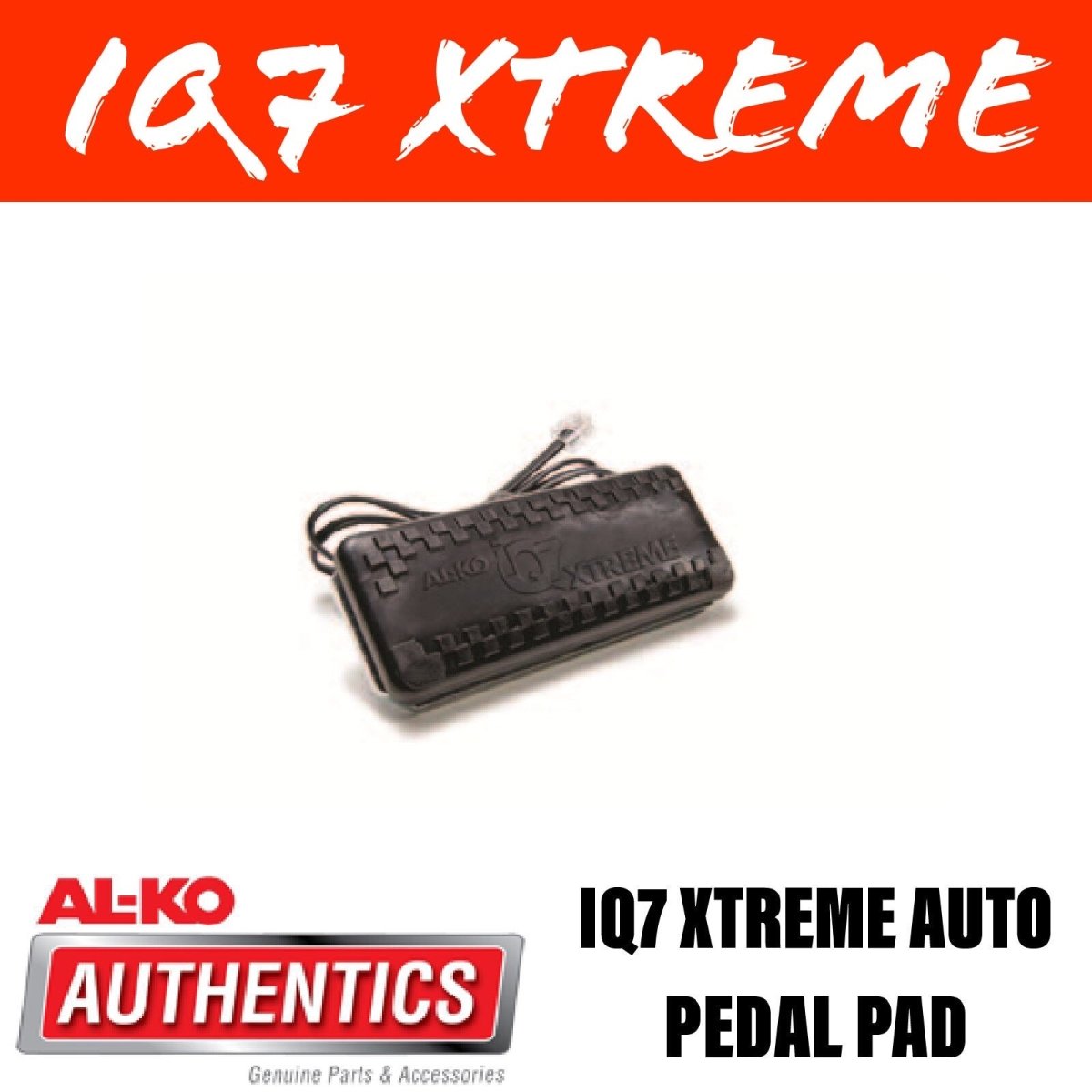

AL‑KO iQ7 XTREME Brake Pedal Pad – Automatic Transmission (P/N 355006)

Overview

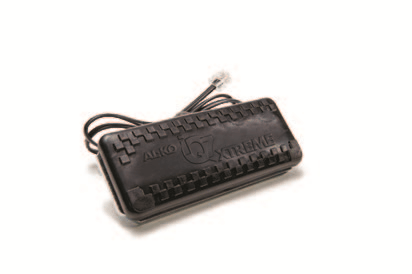

This official AL‑KO iQ7 XTREME Brake Pedal Pad (P/N 355006) is exclusively designed for automatic transmission vehicles equipped with the iQ7 XTREME actuator. Its integrated pressure-sensitive sensor reliably converts brake pedal pressure into proportional brake voltage control.

Compatibility

• Suitable for automatic transmission brake pedals ONLY

• Works exclusively with AL‑KO iQ7 XTREME actuator systems (P/N 355002)

• Not compatible with manual pedal assemblies or earlier Sensabrake systems

Installation & Mounting

1. Use included drill template to mark the brake pedal for two 5.5 mm holes

2. Fit the pad over the pedal using adhesive and support plate

3. Ensure backing plate is installed between rubber pad and metal pedal

4. Secure sensor cable; plug into iQ7 controller under dashboard

5. Avoid interfering with pedal travel or adjacent wiring

Specifications

• Part number: 355006

• Sensor: Pressure-sensitive film die-cut for precise voltage output

• Construction: Durable rubber pad backed by steel plate

• Includes adhesive and installation template

Maintenance Tips

• Clean brake pedal surface to maintain pad adhesion

• Check sensor cable for secure routing and wear

• Verify output signal using LED intensity on Mouse controller—varies with braking force

Shipping & Warranty

• Ships next business day from Brisbane warehouse

• Genuine AL‑KO component—with standard 12‑month manufacturer warranty
