Overview

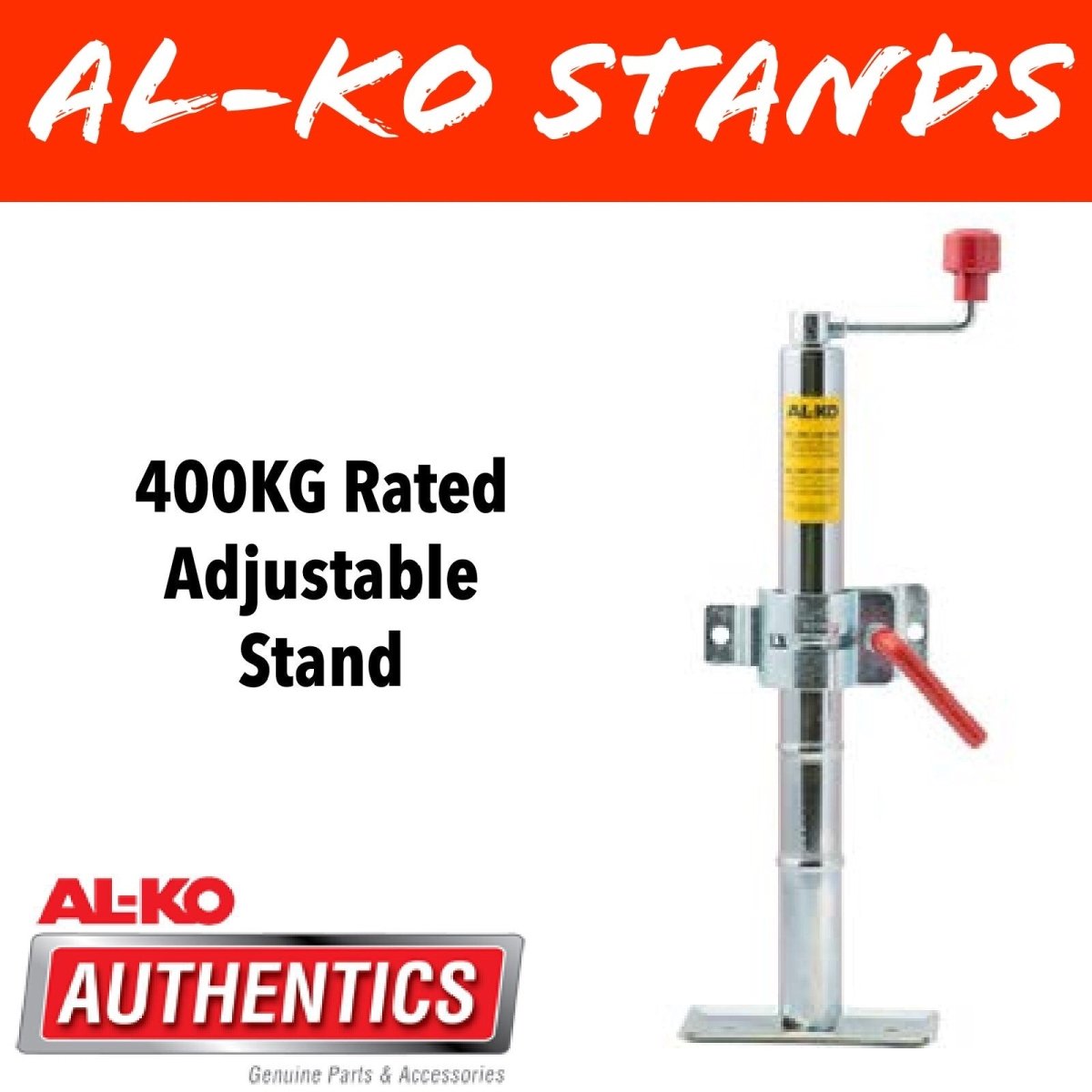

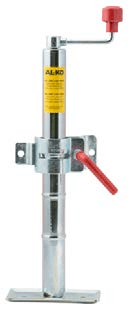

This AL‑KO 400 kg adjustable trailer stand delivers rigid, reliable support for stationary trailers, caravans, plant equipment and more. Featuring a flat base for stable footing and easy height adjustment, it’s the perfect accessory when a wheel isn’t required.
Mount using the included clamp to standard jockey wheel tube (Ø 48 mm). The heavy-duty zinc‑plated finish resists corrosion while withstanding the elements.
✅ Key Features
-
400 kg static load rating — robust enough for most trailers and heavy trailer gear
-
Height adjustable from approx. 515 mm to 765 mm (250 mm lift range)
-
Flat footplate base (~190 × 100 mm) — provides stable ground contact, even on soft or uneven surfaces
-
Easy crank handle — adjusts quickly without tools or excessive force
-
Zinc-plated steel construction — high corrosion-resistance for long-lasting performance
-
Mounting clamp included — suits 48 mm tube jockey wheel clamps or standard drawbar mounts
📐 Specifications
| Feature | Specification |
|---|---|
| Catalog / Part No. | 622120 |
| Load Capacity | 400 kg static |
| Closed Height (H₁) | ≈ 515 mm |
| Extended Height (H₂) | ≈ 765 mm |
| Lift Range | ≈ 250 mm |
| Tube Outer Diameter | 48 mm |
| Footplate Size | ≈ 190 × 100 mm |
| Weight | ~5 kg |
| Surface Finish | Zinc-plated steel |
