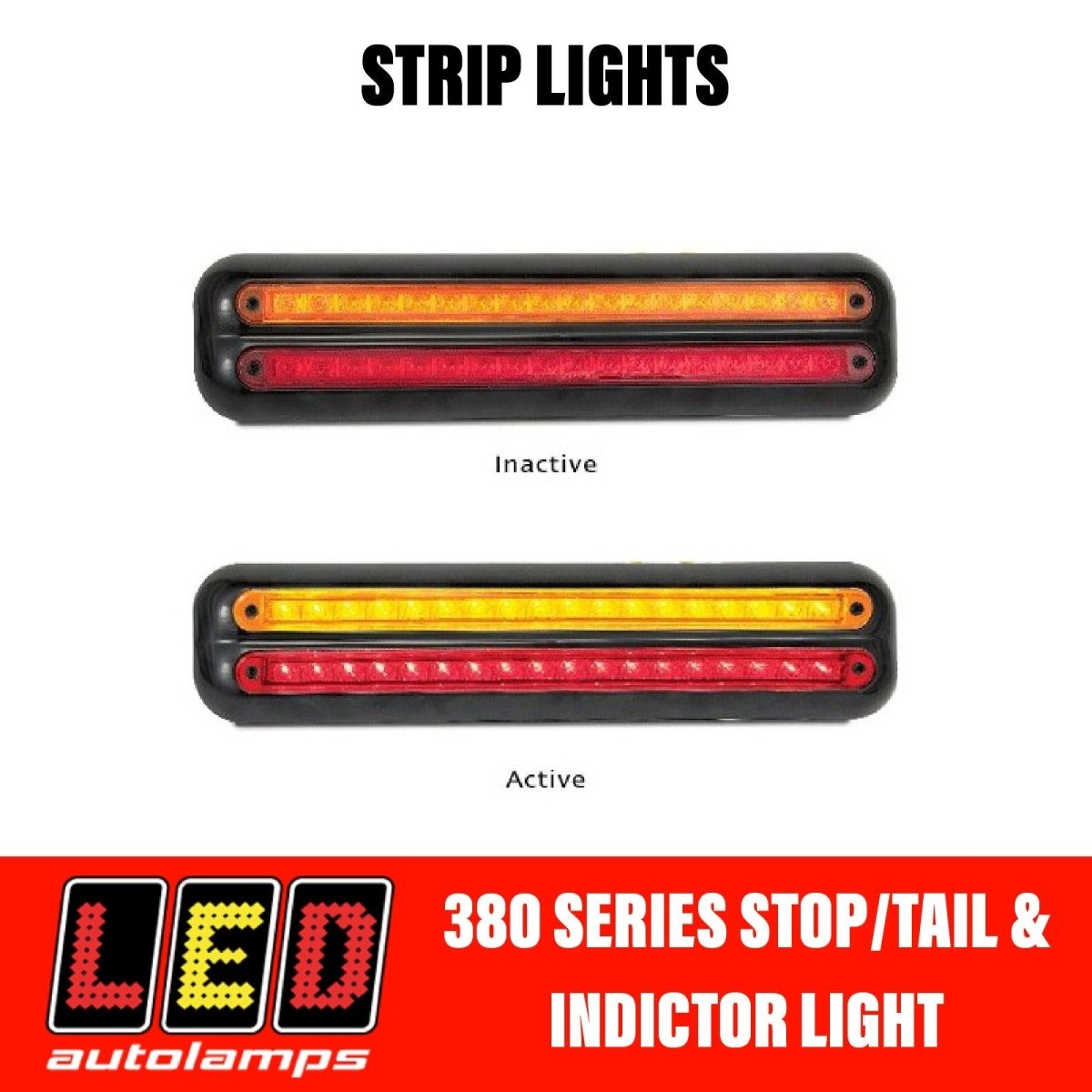

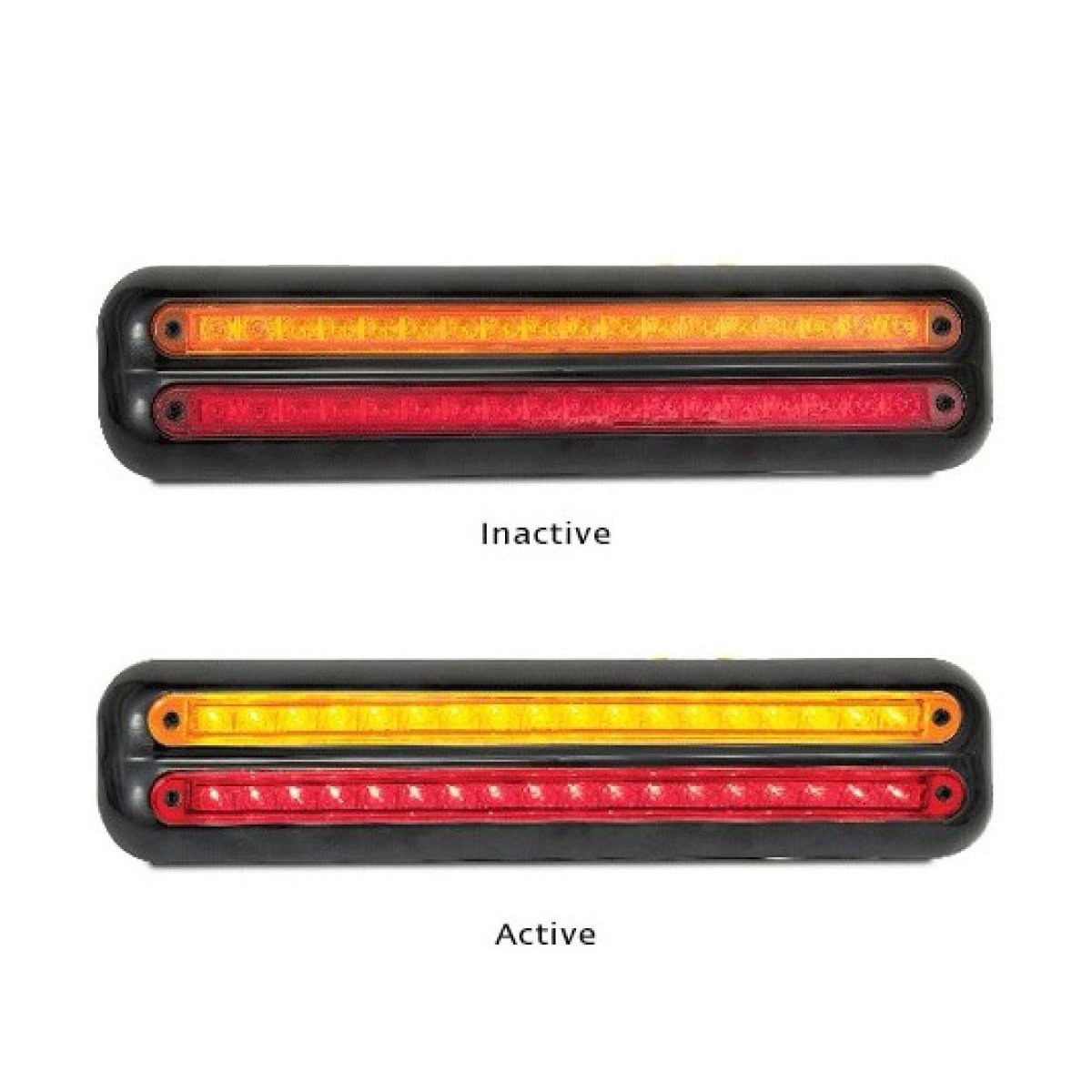

LED Autolamps 380BAR12 Stop‑Tail‑Indicator Strip Light – 12 V, ADR Approved, IP67

Product Overview

Compact and sleek, the LED Autolamps 380BAR12 is a premium ADR-approved strip lamp delivering Stop, Tail, and Indicator functions in one slimline housing. Designed for trailers, utes, caravans, and commercial vehicles, it offers high reliability with IP67-rated waterproofing and a 5-year manufacturer warranty.

Key Features & Specifications

• Functions: Stop / Tail / Indicator in a single strip lamp

• Voltage: 12 V DC only (shown in blister pack SKU)

• LED Count: 20 LEDs

• Current Draw (@13.8 V): Stop ~0.16 A, Tail ~0.04 A, Indicator ~0.18 A

• Dimensions: 428 × 97 × 22 mm (low-profile strip design)

• Cable: 40 cm pre-wired cable included

• Ingress Protection: IP67—fully waterproof and dustproof

• Certifications: ADR 49/00 (Stop/Tail – CRN 3973), ADR 6/00 Cat 2a (Indicator – CRN 39470)

• Warranty: 5‑year manufacturer warranty


Included in the Package

• 1 × LED Autolamps 380BAR12 strip lamp with black double bracket

• Mounting screws and pre-wired 40 cm cable

Application Notes

Ideal for horizontal or vertical surface mounting — especially suited for light vehicles, tray backs, boat trailers, and caravans. Designed to match Autolamps’ 125/100 Series single-function lamps for full rear lighting setups.

Warranty & Shipping Info

• Backed by a 5-year manufacturer warranty

• Fast dispatch from Queensland, typically next business day

• Australia-wide shipping calculated at checkout
