Overview

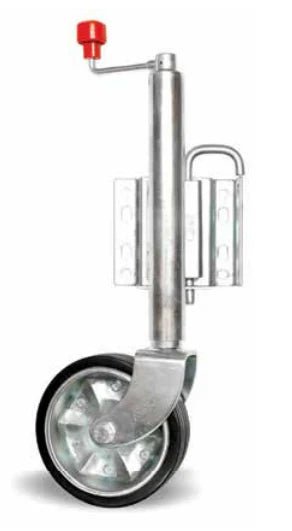

Upgrade your trailer's mobility with the AL‑KO Premium 8″ Heavy‑Duty Jockey Wheel featuring a vertical pull‑pin swivel bracket. Built for industrial and commercial-grade use, this jockey wheel stays permanently attached and locks securely for travel—ideal for demanding towing scenarios.
Key Benefits
-
Pull‑Pin safety lock — locks the wheel firmly into the swivel bracket, reducing lateral movement and enhancing towing safety
-
Impressive 500 kg static load rating — engineered for heavy loads and durability under pressure
-
Premium construction — features a zinc-plated 48 mm tube, solid metal-rimmed 200 mm (8″) wheel, and rugged swivel bracket for long-term reliability
-
Easy installation — compatible with welding or bolting to drawbars and A-frames; multiple mounting hole options allow flexible fitting using U‑bolts
Technical Specifications
| Spec | Details |
|---|---|
| Wheel Diameter | 200 mm (8″) |
| Load Capacity (Static) | 500 kg |
| Tube Outer Diameter | 48 mm |
| Closed Height (H1) | 658 mm |
| Extended Height (H2) | 921 mm |
| Weight | Approx. 11 kg |
| Mounting Options | Weld or bolt-on with U-bolts, 50–100 mm A-frames |
| Finish | Zinc-plated |
