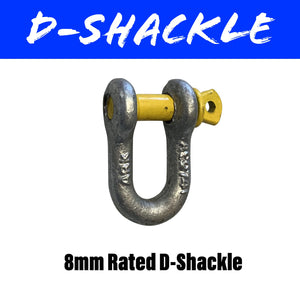

8MM RATED D-SHACKLE
PRICE IS FOR 1X SHACKLE
|Trailer ATM (kg)||Chain size classification
|Suitable rated D shackle size
Grade ‘S’ or ‘6 dee’ or ‘6 bow’
|Minimum proof load strength (kN)
chain / shackle
|Up to 1,000||1,000||4177-10||6mm S WLL 0.5T||4.9 / 9.9|
|Up to 1,600||1,600||4177-16||6mm S WLL 0.5T||7.9 / 9.9|
|Up to 2,500||2,500||4177-25||8mm S WLL 0.75T||12.3 / 14.8|
|Up to 3,500||3,500||4177-35||10mm S WLL 1.0T||/ 19.7|
Alternatively, use a shackle that is compatible with the safety chain and a reputable brand. The shackle will have markings to show the brand or enough identification to trace its brand and strength.
Here are more tips for using a shackle:
- Usually the diameter of a shackle pin is larger than the shackle body.
- The strength of a shackle varies according to its grade. An ‘S’ grade shackle is stronger than an ‘M’ grade shackle of the same size.
- Stainless steel shackles are generally unsuitable for trailers, as they have low resistance to bending stresses.
- A bow shackle provides flexibility for more angular movement than a ‘D’ shackle.
