Overview

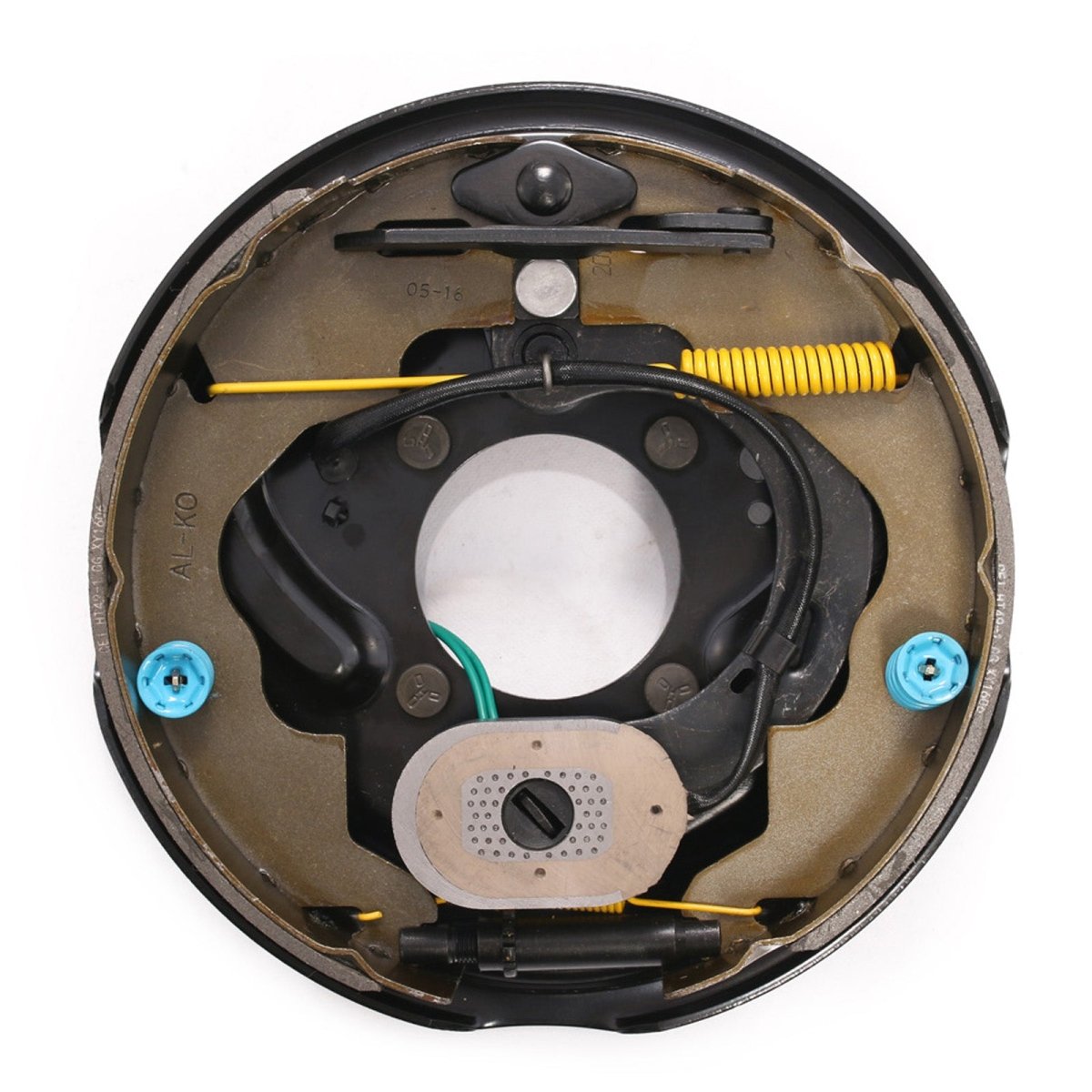

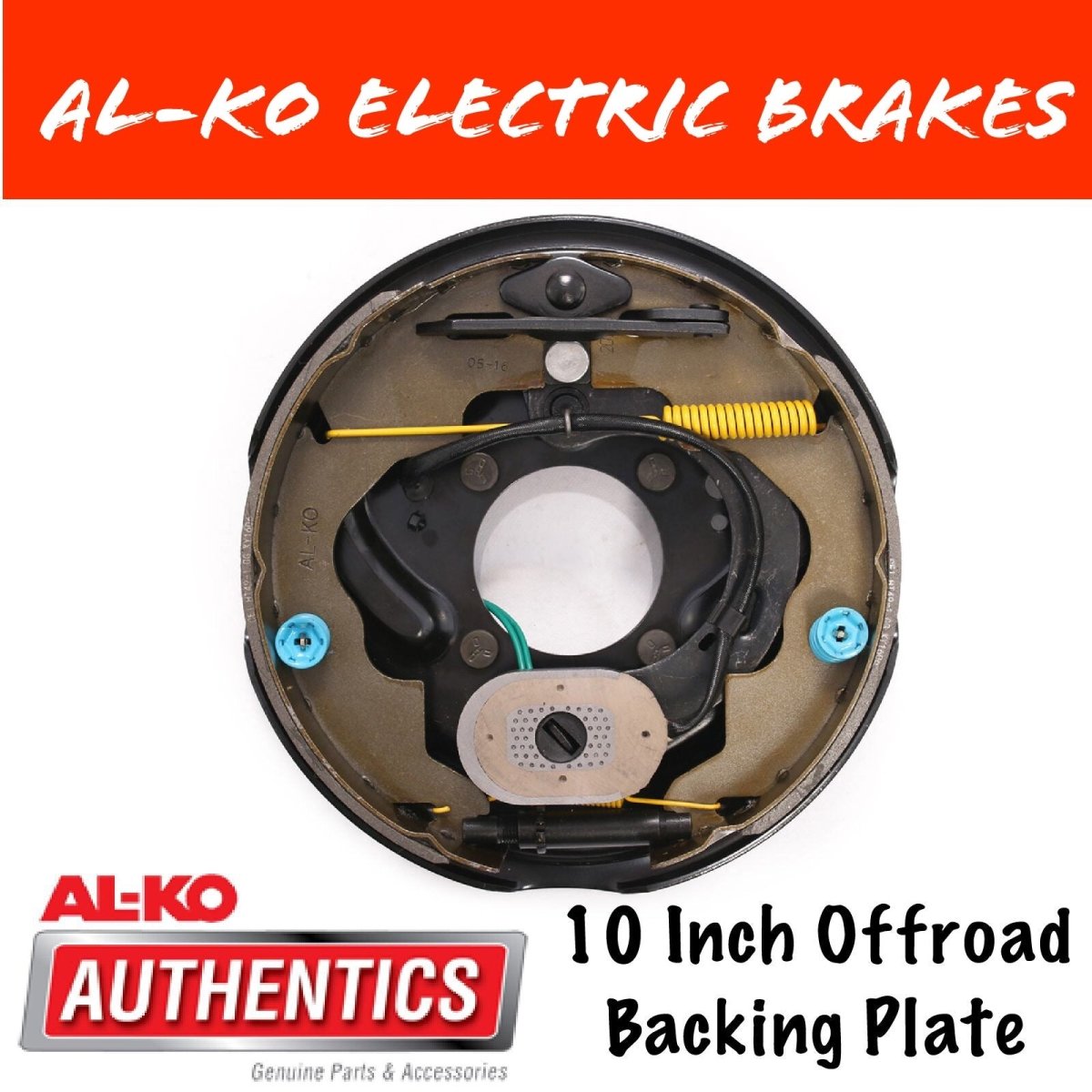

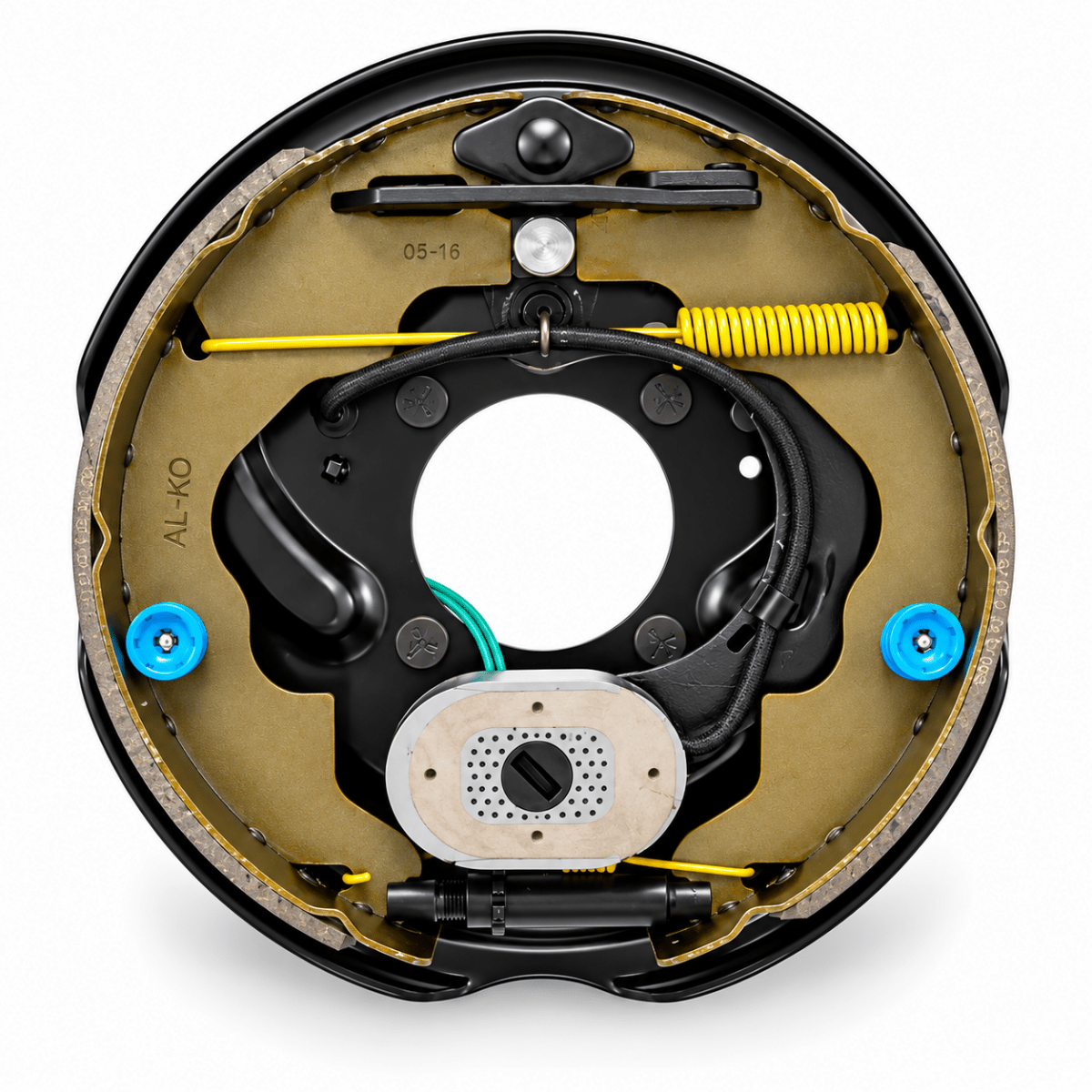

This is a genuine AL‑KO 10″ Off‑Road Electric Brake Backing Plate – with integrated park brake lever, engineered specifically for off-road trailers and caravans. It includes a heavy-duty plastic-core magnet designed to reduce wear and vibration when towing on corrugated and uneven terrain.
Fully assembled and ready to install, this backing plate is ideal for serious off-road use and heavy loads.
What’s Included
-
Fully assembled off-road backing plate
-
Off-road electric brake magnet with plastic core
-
Pre-installed brake shoes, return springs, and actuating arm
-
Park brake lever for manual handbrake compatibility
-
Mounting holes (hardware not included)
Key Features
✅ Genuine AL‑KO off-road part – built to perform in harsh Australian conditions
✅ Plastic-core magnet – resists wear and shock, ideal for corrugations
✅ Park brake compatible – includes handbrake lever for mechanical cable setups
✅ Standard bolt pattern – fits common 10″ electric brake flanges (see specs)
✅ Fully assembled – no setup or adjustment required before installation
✅ Compliant setup – suitable for ADR-compliant trailer braking systems when used with approved brake controllers and breakaway units
Technical Specifications
| Spec | Detail |
|---|---|
| Size | 10″ × 2¼″ (254 mm × 57 mm) drum compatibility |
| Fitment | Left-hand (passenger side) and Right-hand (driver side) |
| Part Number | AL‑KO 331151 (LHS) 331150 (RHS) |
| Mounting Pattern | 4 × 7/16″ UNF bolts, ~76.15 mm PCD |
| Magnet Type | Plastic-core Off‑Road design |
| Park Brake Lever | Included – mechanical cable-compatible |
| Rated Load | ~800 kg/wheel (13″–14″), ~700 kg/wheel (15″–16″) |
| ADR Compliance | Yes – when paired with compliant systems |
Applications
-
Off-road caravans and camper trailers
-
Heavy-duty or rugged terrain trailers
-
Ideal for brake upgrades or replacements
-
Suited for AL‑KO and compatible electric drum hubs
Why Choose the Off‑Road Version?
AL‑KO’s Off‑Road electric brake backing plates are built for Australia's toughest towing conditions. The reinforced plastic-core magnet absorbs vibration and extends magnet life—reducing brake chatter, uneven wear, and early replacements.
If you're towing over corrugations, unsealed roads, or tackling 4WD tracks, these are a must-have upgrade over standard electric brakes.
Related Products
Installation Notes
-
Mounts using a standard 4-bolt brake flange
-
Always install with matching right-hand backing plate (sold separately)
-
Ensure brake controller and cabling are suitable for Off‑Road use
-
Grease wheel bearings and check hub drum surface before fitting
Shipping is calculated at checkout based on your location.
- Sold individually — choose left or right side
- Heavy-duty off-road version of 10" electric brake backing plate
- Suits 10" AL‑KO off-road brake drums
- Mounting: 4 bolt pattern (2.875" center spacing)
- Rated to 1600 kg per axle
- Includes magnet, brake shoes, springs, and pre-wired connections
- Fitted with genuine AL‑KO off-road magnet for improved durability
- Recommended to replace left and right sides together for balanced braking
