Overview

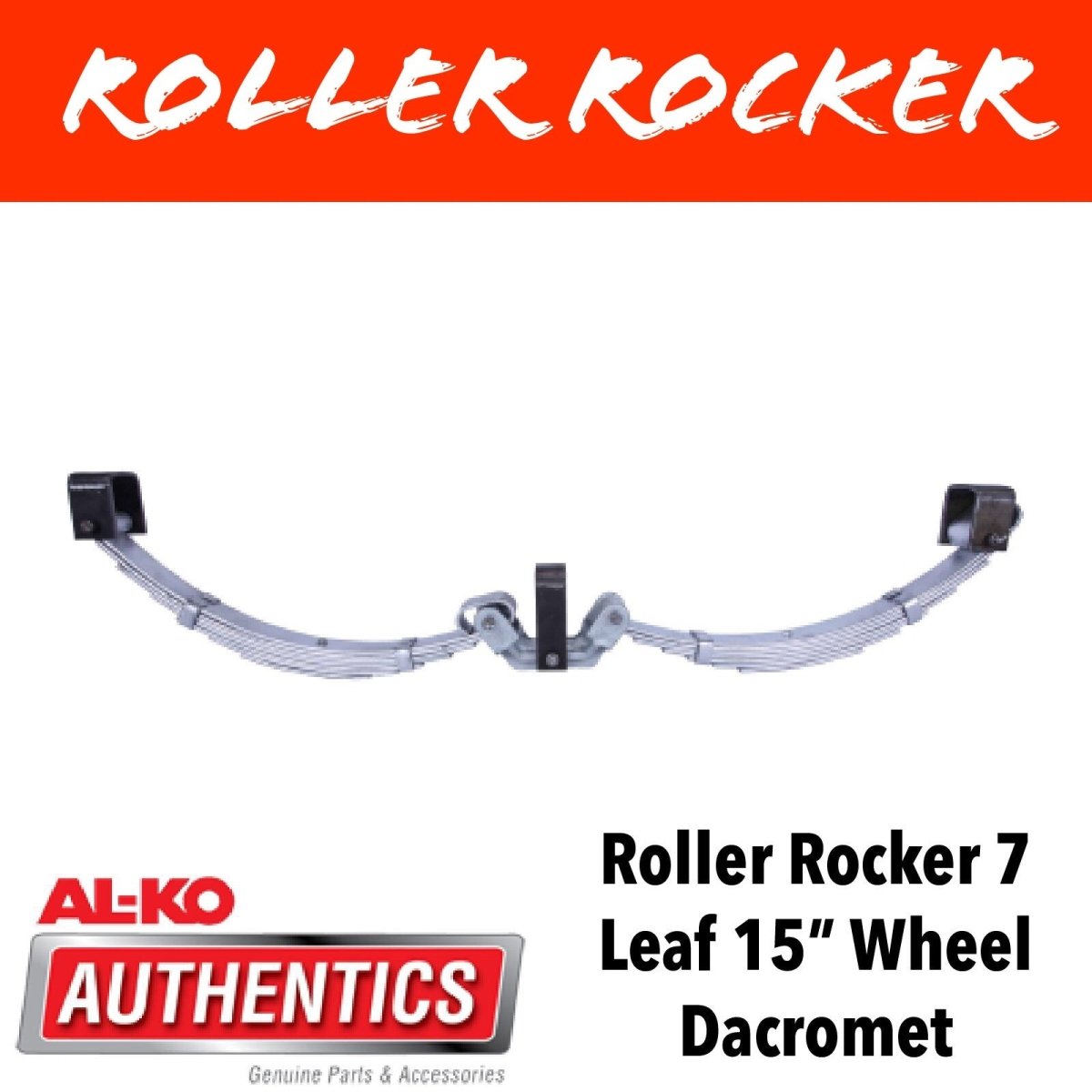

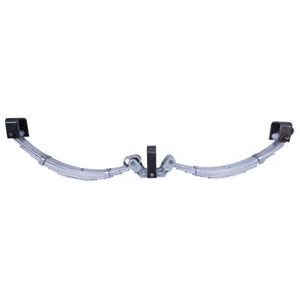

This is a genuine AL‑KO DACROMET-coated 7‑leaf roller rocker spring, designed for tandem axle trailers using 15″ wheels. Each unit is sold individually—select LHS (P/N 576671D) or RHS (P/N 576671D) as required.
Built with 60 mm wide leaves, this spring supports smooth load transfer and handling, and is well-suited to tough Australian conditions, including coastal and marine applications.
Key Features
-
✅ 7‑leaf design, heavy-duty construction for reliable load support
-
✅ DACROMET corrosion-resistant finish, ideal for harsh environments
-
✅ Roller rocker suspension system for efficient load-sharing
-
✅ Fits 15″ wheel applications
-
✅ Sold individually with variant selection for side-specific installation
Specifications
| Feature | |
|---|---|
| Spring Width | 60 mm |
| Leaf Count | 7 |
| Finish | DACROMET coated |
| Compatible Wheel Size | 15″ |
| Load Capacity (Pair) | 1,625–2,100 kg (pair) |
| Load Capacity (Per Spring) | ~812–1,050 kg |
| AL‑KO Part Number | 576671D (LHS or RHS) |

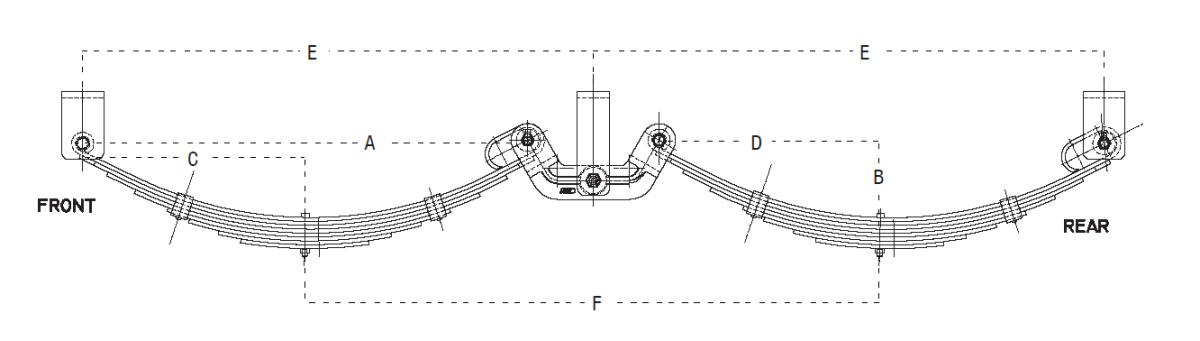

| Dimensions (A–F) | A ≈ 687 mm, B 117 mm, C 396 mm, D 291 mm, E 787 mm, F 785 mm (DACROMET spec) |
Contents (Included)
-
One 7‑leaf spring (LHS or RHS)
-
Centre rocker pivot bracket
-
Roller and mounting hardware: front, centre, rear mounts and bolts
⚠️ Note: This product is hand-specific and sold per side. To equip both axles, select one LHS and one RHS spring when ordering.
