Overview

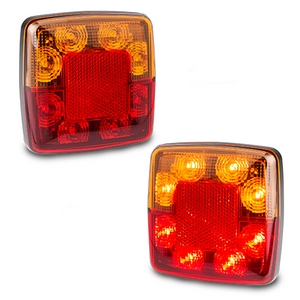

The LED Autolamps 98BAR2 delivers a compact, reliable rear lighting solution in a twin-pack format. Featuring Stop, Tail, Indicator, Licence Plate lamp, and built-in reflector, this lamp is ADR/ECE certified and rated IP67 for full submersion resistance. Perfect for trailers, caravans, and utility applications.
Key Features
-
Part No. 98BAR2, supplied as a twin blister pack
-
Fully ADR/ECE certified for Australian roads
-
IP67 waterproof rating — dust-tight and submersible
-
Includes Stop/Tail/Indicator, licence plate light, and inbuilt reflector
-
Low-profile design (100 × 100 × 22 mm), ideal for compact applications Pre-wired with 40 cm cable, easy surface-mount installation
-
Efficient LED current draw: Stop 0.06 A, Tail 0.01 A, Indicator 0.05 A at 13.8 V
-
Includes 5-year manufacturer warranty
Technical Specifications
| Specification | Details |
|---|---|
| Voltage | 12 V DC |

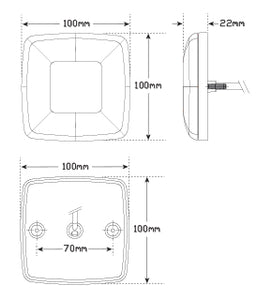

| Dimensions (mm) | 100 × 100 × 22 |
| LEDs per Lamp | 8 + integrated licence plate LEDs |
| Cable Length | 40 cm pre-wired |
| Current Draw | Stop 0.06 A / Tail 0.01 A / Indicator 0.05 A @ 13.8 V |
| Cable Options | Available in 5 m or 10 m kits |
| Mount Orientation | Horizontal, indicator at top per ADR |
| IP Rating | IP67 fully waterproof |
| Compliance | ADR 49/00, 6/00, 47/00; ECE certified |
| Warranty | 5 years |
Ideal For:
-
Boat trailers, caravans, ute loads, commercial trailers
-
Conditions exposed to saltwater, rain, dust, and vibration
-
Applications requiring ADR-compliant rear lighting in a compact footprint
